Toro Proline Cordless Recycling Mower

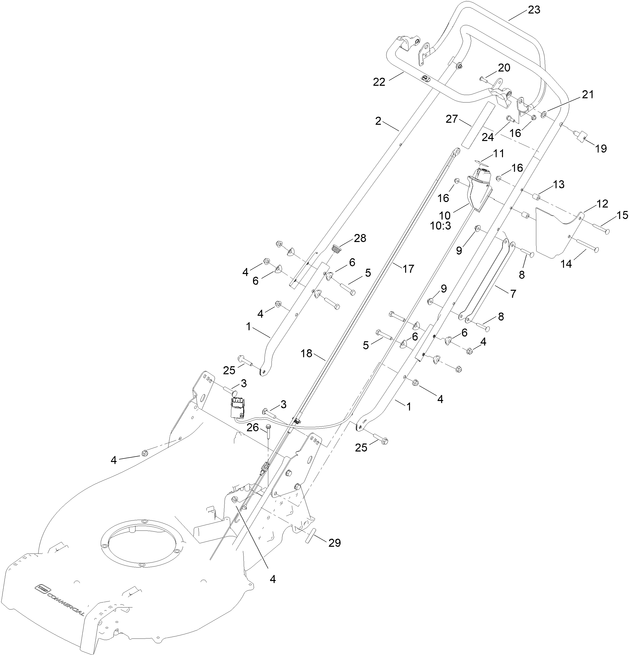

Handle Assembly

No.	Part	Description	Price £
1	HY-134-5087-03	Call 01732 441333
2	HY-134-5160-03	Call 01732 441333
3	HY-3230-4	Call 01732 441333
4	HY-104-8300	NUT-HF, NI	0.43	Add to Cart (out of stock)
5	HY-322-39	Call 01732 441333
6	HY-137-3009	Call 01732 441333
7	HY-134-5187-03	Call 01732 441333
8	HY-108-0988	Call 01732 441333
9	HY-114-3778	Call 01732 441333
10	HY-140-3891	Call 01732 441333
10:3	HY-140-4231	Call 01732 441333
11	HY-134-4691	DECAL - CONTROL SPEED	2.30	Add to Cart (out of stock)
12	HY-140-4168-03	Call 01732 441333
13	HY-134-5188	Call 01732 441333
14	HY-137-9142	Call 01732 441333
15	HY-136-7081	Call 01732 441333
16	HY-104-7201	NUT-HF	0.77	Add to Cart (out of stock)
17	HY-145-1483	Call 01732 441333
18	HY-144-3180	Call 01732 441333
19	HY-340182	PIN	1.62	Add to Cart (out of stock)
20	HY-09687	SCREW	1.62	Add to Cart (out of stock)
21	HY-09688	WASHER NYLON 19111.6	0.68	Add to Cart (out of stock)
22	HY-111-9662	OPC LEVER	17.81	Add to Cart (out of stock)
23	HY-111-9381-03	LEVER-CLUTCH, GEARBOX	16.27	Add to Cart (out of stock)
24	HY-42-3560	Call 01732 441333
25	HY-115-1794	Call 01732 441333
26	HY-94-2691	Call 01732 441333
27	HY-144-3175	Call 01732 441333
28	HY-144-6379	Call 01732 441333
29	HY-131-0822	Call 01732 441333
