Toro Proline Cordless Recycling Mower

SKU: TW-22275

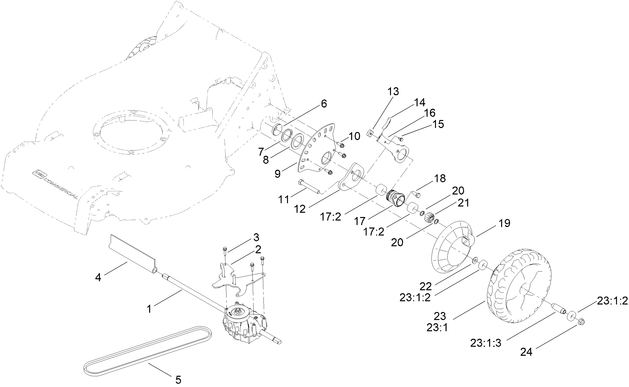

Transmission and Rear Wheel Assembly

No.PartDescriptionPrice £
1HY-140-4011Call 01732 441333
2HY-140-4012-03Call 01732 441333
3HY-27-0220Call 01732 441333
4HY-130-9681Call 01732 441333
5HY-125-8395BELT-V21.02Add to Cart (out of stock)
6HY-127-6848Call 01732 441333
7HY-32151-10Call 01732 441333
8HY-98-1452Call 01732 441333
9HY-130-6422PLATE-HOC, REAR17.32Add to Cart (out of stock)
10HY-49-2040SCREW-HWHTF2.46Add to Cart
11HY-323-13SCREW-HH1.58Add to Cart
12HY-133-2641ARM-PIVOT, REAR13.61Add to Cart (out of stock)
13HY-131-5377KEY-ARM, SPRING1.85Add to Cart
14HY-125-1093KNOB-LEVER, HOC5.30Add to Cart (out of stock)
15HY-104-2065SCREW-HWH0.35Add to Cart
16HY-121-1448-03ARM-SPRING, REAR12.36Add to Cart (out of stock)
17HY-136-5894BEARING RETAINER ASM45.78Add to Cart (out of stock)
17:2HY-133-2606BEARING-BALL, CUSTOM17.32Add to Cart (out of stock)
18HY-133-2668Call 01732 441333
19HY-133-2635COVER-WHEEL14.84Add to Cart (out of stock)
20HY-32151-61RING-RETAINING2.96Add to Cart (out of stock)
21HY-131-5399GEAR-PINION, 15T5.93Add to Cart (out of stock)
22HY-74-1671Call 01732 441333
23HY-133-26409-INCH WHEEL ASM81.67Add to Cart (out of stock)
23:1:2HY-133-2603BEARING-BALL29.69Add to Cart (out of stock)
23:1:3HY-125-1077SPACER7.54Add to Cart (out of stock)
24HY-104-8301NUT-HF, NI1.34Add to Cart (out of stock)

Other Product Diagrams

Front Wheel and HeightofCut Assembly

Handle Assembly

Housing Assembly

Lower Motor Module Assembly No. 1404161

Motor Module and Blade Assembly

Upper Motor Module Assembly No. 1404120

Grass Bag Assembly

Items marked as ‘add to cart’ or ‘in-stock’ will typically be dispatched within 3-5 working days. For items marked as ‘out of stock’ or ‘available to order,’ we will place an order with the manufacturer. The dispatch time for these items may vary depending on their stock levels.
