Stiga SBC232 287220002/16

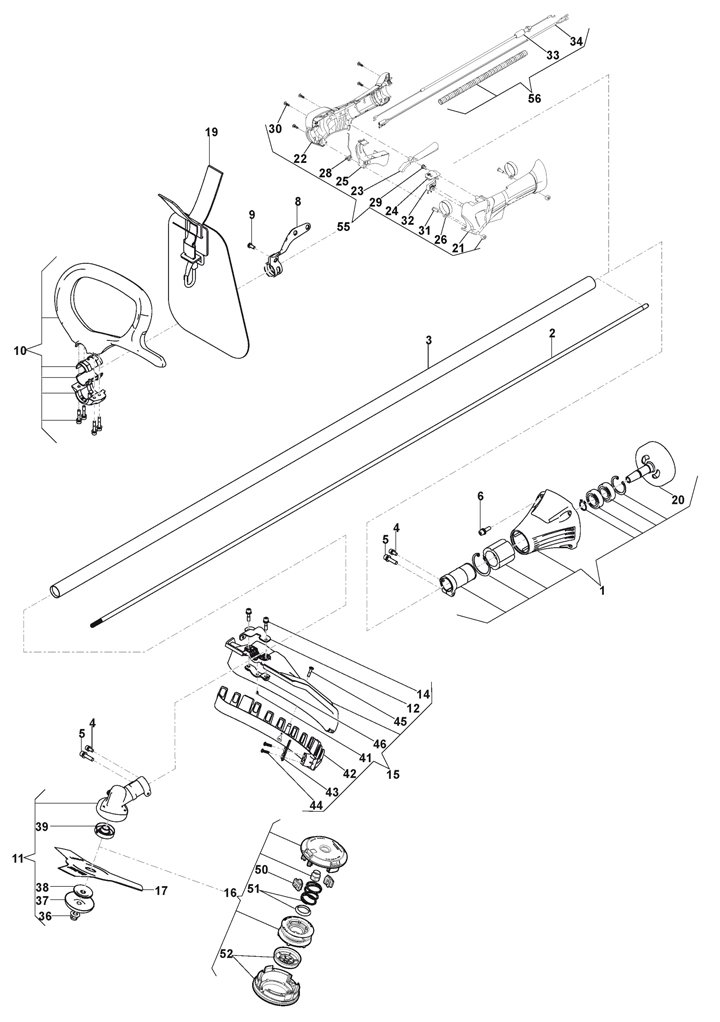

287220002/16 Transmission

No.	Part	Description	Price £
1	MW-118804001/0	TRANSMISSION SUPPORT D	41.51	Add to Cart (Order)
2	MW-118804042/0	TRANSMISSION SHAFT	11.92	Add to Cart (Order)
3	MW-118803959/0	TRANSMISSION PIPE D=26	22.10	Add to Cart (Order)
4	MW-2135180	Call 01732 441333
5	MW-2132180	SCREW TCCE M6 X 25	1.27	Add to Cart (Order)
6	MW-112727801/0	SCREW TCB TORX M6X20 A	1.46	Add to Cart (Order)
8	MW-118804057/0	Call 01732 441333
9	MW-2135180	TORX SCREW M5 X 12	1.34	Add to Cart (Order)
10	MW-118803955/0	FRONT LOOP HANDLE [YEL	23.83	Add to Cart (Order)
11	MW-118801184/0	GEAR CASE ASSEMBLY	61.60	Add to Cart (Order)
12	MW-118804054/0	PLASTIC PROTECTION GUA	2.28	Add to Cart (Order)
14	MW-2132180	SCREW TCCE M6 X 25	1.27	Add to Cart (Order)
15	MW-118803954/1	SAFETY COVER ASSEMBLY	25.98	Add to Cart (Order)
16	MW-1911-9226-01	Call 01732 441333
17	MW-118801125/0	BLADE 3 TEETH 1.4X255M	9.11	Add to Cart
19	MW-118804016/0	Call 01732 441333
20	MW-118804037/0	CLUTCH DRUM	13.39	Add to Cart (Order)
21	MW-118803966/0	LEFT HANDGRIP [YELLOW]	4.69	Add to Cart (Order)
22	MW-118803972/0	RIGHT HANDGRIP [YELLOW	4.69	Add to Cart (Order)
23	MW-118803149/0	SAFETY SWITCH [YELLOW]	1.34	Add to Cart (Order)
24	MW-118803147/0	ON/OFF SWITCH [RED]	1.34	Add to Cart (Order)
25	MW-118803150/0	THROTTLE TRIGGER	1.34	Add to Cart (Order)
26	MW-118803146/0	RING CLAMP	1.61	Add to Cart (Order)
28	MW-118803151/0	SWITCH SPRING	1.61	Add to Cart (Order)
29	MW-118803148/0	SPRING	1.27	Add to Cart (Order)
30	MW-112727810/0	SELF-TAP SCREW 3.5X13	1.46	Add to Cart (Order)
31	MW-112726388/0	CROSS-HEAD SCREW M4X12	1.46	Add to Cart (Order)
32	MW-118804014/0	STOP SWITCH	2.02	Add to Cart (Order)
33	MW-118803985/0	THROTTLE CABLE	7.76	Add to Cart (Order)
34	MW-118803155/0	Call 01732 441333
36	MW-2452090	LEFT SELF-LOCKING NUT	5.10	Add to Cart (Order)
37	MW-118803206/0	GEAR CASE DUST COVER	3.35	Add to Cart
38	MW-118803205/0	Call 01732 441333
39	MW-118803204/0	Call 01732 441333
41	MW-112727815/0	SCREW 8P X 3/8	1.34	Add to Cart (Order)
42		Call 01732 441333
43	MW-118804056/0	LINE CUTTER BLADE	1.74	Add to Cart (Order)
44	MW-6981116	Call 01732 441333
45	MW-112728531/0	Call 01732 441333
46		Call 01732 441333
50	MW-118804890/0	LINE RETAINER	5.10	Add to Cart (Order)
51	MW-118804889/0	SPRING	4.02	Add to Cart (Order)
52	MW-118804888/0	COVER & KNOB	13.66	Add to Cart (Order)
55	MW-118804956/0	HANDLE KIT [YELLOW]	25.64	Add to Cart (Order)
56	MW-118804957/0	CABLE KIT	3.61	Add to Cart (Order)
