Stiga SBC232 287220002/16

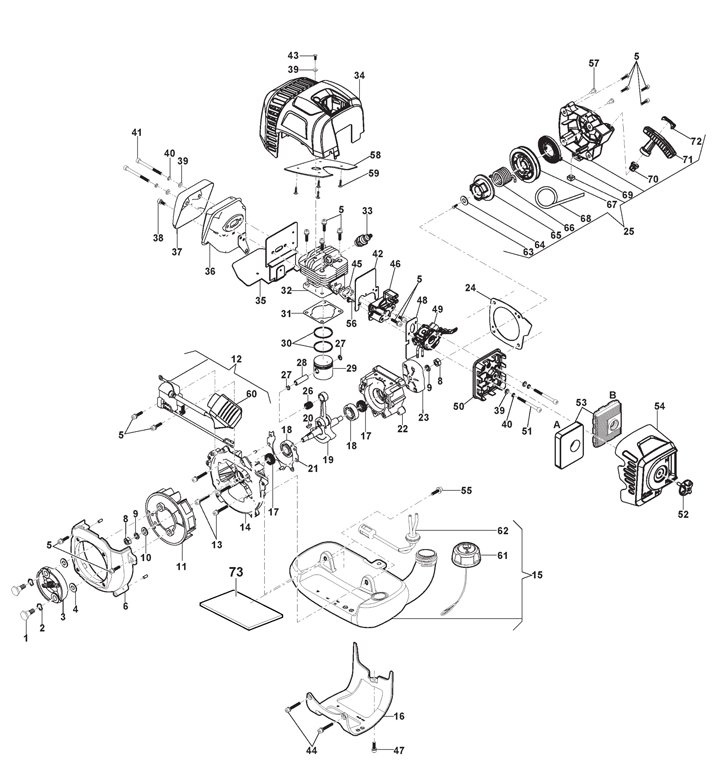

287220002/16 Engine

No.	Part	Description	Price £
1	MW-118804038/0	SCREW	1.34	Add to Cart (Order)
2	MW-118804045/0	WASHER	1.14	Add to Cart (Order)
3	MW-118804000/0	CLUTCH ASSEMBLY	10.79	Add to Cart (Order)
4	MW-118804046/0	WASHER	1.14	Add to Cart (Order)
5	MW-112789008/0	Call 01732 441333
6	MW-118804032/0	Call 01732 441333
8	MW-112293200/0	HEXAGON NUT M8 UNI 558	1.46	Add to Cart (Order)
9	MW-112369500/0	SPRING WASHER D=8	1.34	Add to Cart
10	MW-112521350/0	WASHER M8 8.4X16X1.6	1.46	Add to Cart (Order)
11	MW-118804012/0	FLYWHEEL	19.88	Add to Cart (Order)
12	MW-118804011/0	IGNITION COIL	32.14	Add to Cart (Order)
13	MW-2135130	TORX SCREW M5 X 35	1.34	Add to Cart (Order)
14	MW-118804024/0	FRONT-HALF CRANKCASE	15.26	Add to Cart (Order)
15	MW-118804003/0	FUEL TANK ASSEMBLY	16.21	Add to Cart (Order)
16	MW-118803961/0	FUEL TANK SUPPORT	8.04	Add to Cart (Order)
17	MW-118801188/0	OIL SEAL 12 X 22 X 7	1.27	Add to Cart (Order)
18	MW-3112030	BEARING 6201 C3	14.20	Add to Cart (Order)
19	MW-118803988/0	CRANKSHAFT	34.81	Add to Cart (Order)
20	MW-123072002/0	FLYWHEEL KEY	1.27	Add to Cart (Order)
21	MW-118804076/0	CRANKCASE GASKET	1.34	Add to Cart (Order)
22	MW-118804026/0	BACK-HALF CRANKCASE	13.99	Add to Cart (Order)
23	MW-118803996/0	STARTER CUP	4.15	Add to Cart (Order)
24	MW-118804051/0	STARTER GASKET	1.74	Add to Cart (Order)
25	MW-118803994/0	RECOIL ASSEMBLY C/W YE	22.22	Add to Cart (Order)
26	MW-118803997/0	NEEDLE BEARING	2.81	Add to Cart (Order)
27	MW-118804059/0	PISTON PIN WASHER	1.14	Add to Cart (Order)
28	MW-118804041/0	PISTON PIN	1.46	Add to Cart (Order)
29	MW-118804031/0	PISTON 32.6CC	8.44	Add to Cart (Order)
30	MW-118804021/0	PISTON RING 32.6CC	2.54	Add to Cart (Order)
31	MW-118804077/0	CYLINDER GASKET	1.61	Add to Cart (Order)
32	MW-118804030/0	CYLINDER 32.6CC	41.51	Add to Cart (Order)
33	MW-3210024	Call 01732 441333
34	MW-118803969/0	CYLINDER COVER [YELLOW	14.20	Add to Cart (Order)
35	MW-118804084/0	Call 01732 441333
36	MW-118803991/0	MUFFLER	41.51	Add to Cart (Order)
37	MW-118804047/0	Call 01732 441333
38	MW-2135180	TORX SCREW M5 X 12	1.34	Add to Cart (Order)
39	MW-112521320/0	WASHER M5 5.3X10X1 UNI	1.46	Add to Cart (Order)
40	MW-112581500/0	GROWER WASHER M5 UNI 1	1.46	Add to Cart (Order)
41	MW-6981283	Call 01732 441333
42	MW-118804053/0	INTAKE MANIFOLD GASKET	2.02	Add to Cart (Order)
43	MW-2135180	Call 01732 441333
44	MW-2135120	SCREW TX M5 X 40	1.34	Add to Cart (Order)
45	MW-118804078/0	Call 01732 441333
46	MW-118804067/0	INTAKE MANIFOLD	3.08	Add to Cart (Order)
47	MW-6981102	Call 01732 441333
48	MW-118804082/0	CARBURETTOR GASKET	1.46	Add to Cart (Order)
49	MW-118804007/0	CARBURETTOR	46.86	Add to Cart (Order)
50	MW-118804063/0	AIR FILTER BASE	1.46	Add to Cart (Order)
51	MW-2135250	Call 01732 441333
52	MW-118803174/0	AIR FILTER KNOB [GREY]	2.54	Add to Cart (Order)
53	MW-118804074/0	FOAM AIR FILTER	1.74	Add to Cart (Order)
53	MW-118804547/0	PAPER AIR FILTER	7.37	Add to Cart (Order)
54	MW-118803968/0	AIR FILTER COVER [YELL	5.10	Add to Cart (Order)
55	MW-112760475/0	SCREW TC M5 X 20	1.87	Add to Cart (Order)
56	MW-6981268	Call 01732 441333
57	MW-112727356/0	Call 01732 441333
58	MW-118804086/0	AIR FILTER GUIDE	6.42	Add to Cart (Order)
59	MW-112727810/0	SELF-TAP SCREW 3.5X13	1.46	Add to Cart (Order)
60	MW-118803163/0	SPARK PLUG CAP	5.89	Add to Cart (Order)
61	MW-322735152/1	Call 01732 441333
62	MW-118804005/0	Call 01732 441333
63	MW-112727790/0	Call 01732 441333
64	MW-112523020/0	WASHER M5 5.5X15X1.6 U	1.46	Add to Cart (Order)
65	MW-118803975/0	STARTER CAM	3.08	Add to Cart (Order)
66	MW-118804061/0	SPRING	2.28	Add to Cart (Order)
67	MW-118803976/0	STARTER PULLEY	6.42	Add to Cart (Order)
68	MW-118803181/0	RECOIL ROPE	2.54	Add to Cart
69	MW-118804060/0	STARTER SPRING	5.75	Add to Cart (Order)
70	MW-118804068/0	Call 01732 441333
71	MW-118803984/0	STARTER HANDLE	1.87	Add to Cart (Order)
72	MW-118804069/0	STARTER HANDLE INSERT	1.27	Add to Cart (Order)
73	MW-118805308/0	HEAT INSULATION DECAL	1.27	Add to Cart (Order)

Stiga SBC232 287220002/16

287220002/16 Engine
