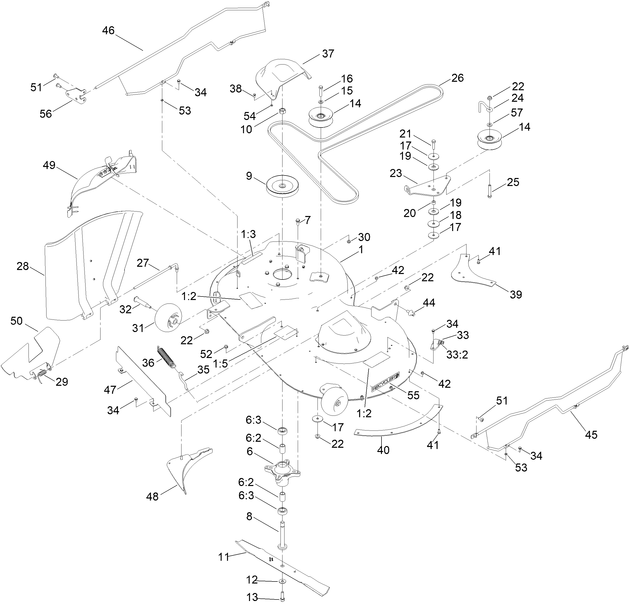

Inch Deck and Decal Assembly
| No. | Part | Description | Price £ | |
|---|---|---|---|---|
| 1 | HY-138-9761 | 42 INCH DECK AND DECAL | 604.44 | Add to Cart (Order) |
| 1:2 | HY-132-0872 | Call 01732 441333 | ||
| 1:3 | HY-93-7009 | Call 01732 441333 | ||
| 1:5 | HY-105-7015 | Call 01732 441333 | ||
| 6 | HY-139-3214 | SPINDLE ASM | 84.14 | Add to Cart (Order) |
| 6:2 | HY-120-7935 | Call 01732 441333 | ||
| 6:3 | HY-138-9770 | Call 01732 441333 | ||
| 7 | HY-32144-41 | SCREW | 5.56 | Add to Cart (Order) |
| 8 | HY-117-7268 | Call 01732 441333 | ||
| 9 | HY-139-2433 | PULLEY | 42.07 | Add to Cart (Order) |
| 10 | HY-139-2578 | Call 01732 441333 | ||
| 11 | HY-117-5376-03 | BLADE-MULCH | 30.92 | Add to Cart (Order) |
| 12 | HY-3290-465 | WASHER-BELLEVILLE | 3.32 | Add to Cart |
| 13 | HY-26-0671 | SCREW-HH | 9.89 | Add to Cart (Order) |
| 14 | HY-132-9420 | PULLEY-IDLER, FLAT | 37.12 | Add to Cart (Order) |
| 15 | HY-115-1166 | Call 01732 441333 | ||
| 16 | HY-138-0722 | SCREW-HH | 1.32 | Add to Cart (Order) |
| 17 | HY-139-1726 | Call 01732 441333 | ||
| 18 | HY-120-2229 | Call 01732 441333 | ||
| 19 | HY-114-0463 | WASHER-FRICTION, COMPO | 5.30 | Add to Cart (Order) |
| 20 | HY-115-4986 | Call 01732 441333 | ||
| 21 | HY-137-3070 | Call 01732 441333 | ||
| 22 | HY-119-4042 | NUT-HF, NI | 0.77 | Add to Cart (Order) |
| 23 | HY-138-7262 | Call 01732 441333 | ||
| 24 | HY-138-7270 | Call 01732 441333 | ||
| 25 | HY-139-2589 | Call 01732 441333 | ||
| 26 | HY-119-8819 | V-BELT | 59.40 | Add to Cart |
| 27 | HY-137-2019 | Call 01732 441333 | ||
| 28 | HY-137-7046 | Call 01732 441333 | ||
| 29 | HY-138-7268 | Call 01732 441333 | ||
| 30 | HY-121-4600 | Call 01732 441333 | ||
| 31 | HY-1-603299 | ROLLER-SCALP, ANTI | 24.74 | Add to Cart (Order) |
| 32 | HY-139-2551 | Call 01732 441333 | ||
| 33 | HY-133-9289 | FITTING-WASHOUT | 6.30 | Add to Cart (Order) |
| 33:2 | HY-133-9290 | Call 01732 441333 | ||
| 34 | HY-32144-4 | SCREW-HWH | 1.48 | Add to Cart |
| 35 | HY-138-7267 | Call 01732 441333 | ||
| 36 | HY-138-7265 | SPRING EXTENSION | 8.03 | Add to Cart (Order) |
| 37 | HY-108-7889 | Call 01732 441333 | ||
| 38 | HY-139-1713 | Call 01732 441333 | ||
| 39 | HY-137-2036-03 | Call 01732 441333 | ||
| 40 | HY-137-2037-03 | Call 01732 441333 | ||
| 41 | HY-137-3041 | Call 01732 441333 | ||
| 42 | HY-137-3088 | NUT-HEX | 0.48 | Add to Cart (Order) |
| 44 | HY-139-5871 | Call 01732 441333 | ||
| 45 | HY-140-0368 | Call 01732 441333 | ||
| 46 | HY-140-0369 | Call 01732 441333 | ||
| 47 | HY-137-2039-03 | Call 01732 441333 | ||
| 48 | HY-137-7034-03 | Call 01732 441333 | ||
| 49 | HY-137-5034 | 42 INCH MULCH PLUG ASM | 121.07 | Add to Cart (Order) |
| 50 | HY-138-2555-03 | Call 01732 441333 | ||
| 51 | HY-138-9753 | Call 01732 441333 | ||
| 52 | HY-119-4041 | Call 01732 441333 | ||
| 53 | HY-1-803037 | NUT-RETAINING | 1.60 | Add to Cart (Order) |
| 54 | HY-132-0900 | Call 01732 441333 | ||
| 55 | HY-119-2368 | DECAL-RECYCLER | 5.89 | Add to Cart (Order) |
| 56 | HY-140-5183-01 | Call 01732 441333 | ||
| 57 | HY-138-7207 | Call 01732 441333 | ||
