Toro 21848 SP Cordless Mower

Housing Assembly

No.	Part	Description	Price £
1	HY-117-4093	Call 01732 441333
2	HY-117-4063	Call 01732 441333
3	HY-117-4064	Call 01732 441333
4	HY-117-4065	Call 01732 441333
5	HY-117-1031	Call 01732 441333
6	HY-110-7129	LATCH-RECYCLE	2.96	Add to Cart (Order)
7	HY-110-7136	HOUSING-KNOB	2.02	Add to Cart (Order)
8	HY-110-7143	Call 01732 441333
9	HY-119-2254	Call 01732 441333
10	HY-119-2262	Call 01732 441333
11	HY-120-9676	Call 01732 441333
12	HY-119-2263	Call 01732 441333
13	HY-114-2668	Call 01732 441333
15	HY-115-2859	SPRING-TORSION	5.46	Add to Cart (Order)
16	HY-114-7924	SPRING-TORSION	3.64	Add to Cart (Order)
17	HY-144-6373	Call 01732 441333
17:1	HY-145-1454	Call 01732 441333
18	HY-49-2040	SCREW	2.34	Add to Cart
19	HY-138-3230	Call 01732 441333
24	HY-3218-6	NUT-JAM	0.74	Add to Cart (Order)
25	HY-139-1721	WASHER-LOCK, INT TOOTH	0.48	Add to Cart (Order)
27	HY-112-6401	COUPLING-HOSE, WASHOUT	2.63	Add to Cart (Order)
28	HY-112-6400	PORT-WASHOUT	5.03	Add to Cart (Order)
29	HY-112-6438	WASHER-SEAL, WASHOUT P	1.66	Add to Cart (Order)
30	HY-112-6437	ADAPTER-CONNECT, QUICK	12.83	Add to Cart (Order)
35	HY-117-4062	Call 01732 441333
37	HY-117-9378	ROD-DEFLECTOR	38.54	Add to Cart (Order)
38	HY-139-1693	SCREW-SHOULDER, BHTF	2.83	Add to Cart (Order)
39	HY-119-2283	Call 01732 441333

Other Product Diagrams

Items marked as ‘add to cart’ or ‘in-stock’ will typically be dispatched within 3-5 working days. For items marked as ‘add to cart (order)’ or ‘available to order,’ we will place an order with the manufacturer. The dispatch time for these items may vary depending on their stock levels.

Toro 21848 SP Cordless Mower

Housing Assembly

Other Product Diagrams

Bag and Frame

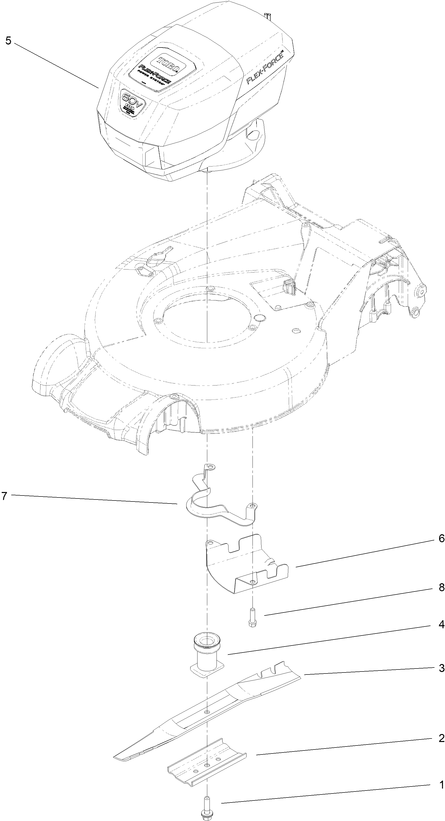

Engine and Blade Assembly

Handle Assembly

Housing Assembly No.1174093

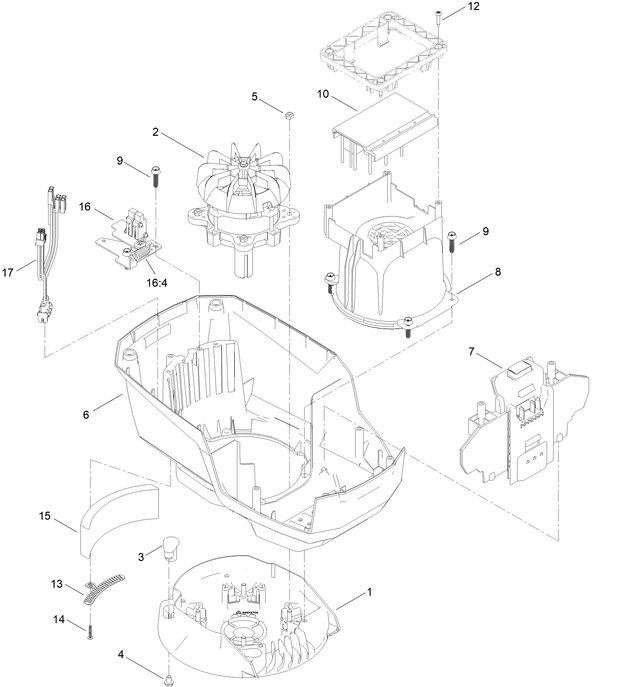

Lower Shroud Assembly Motor Module Assembly No. 1404213

Starter Switch Assembly

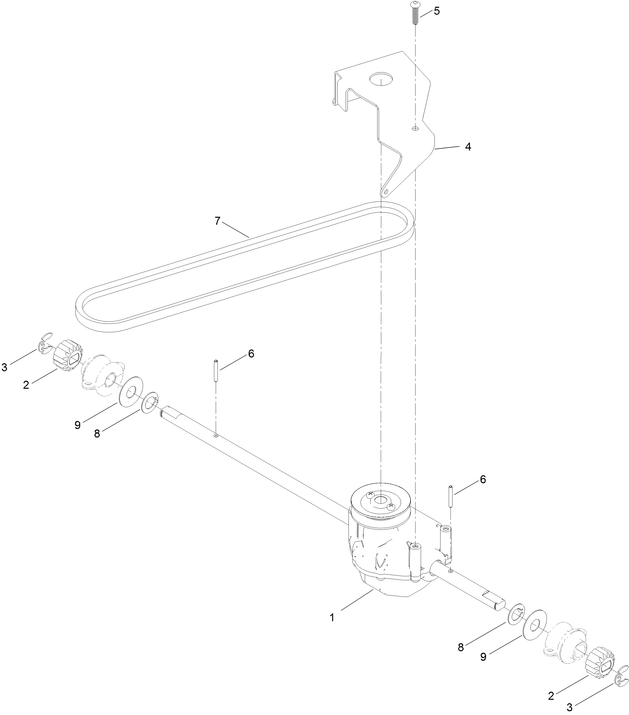

Traction Drive Assembly
