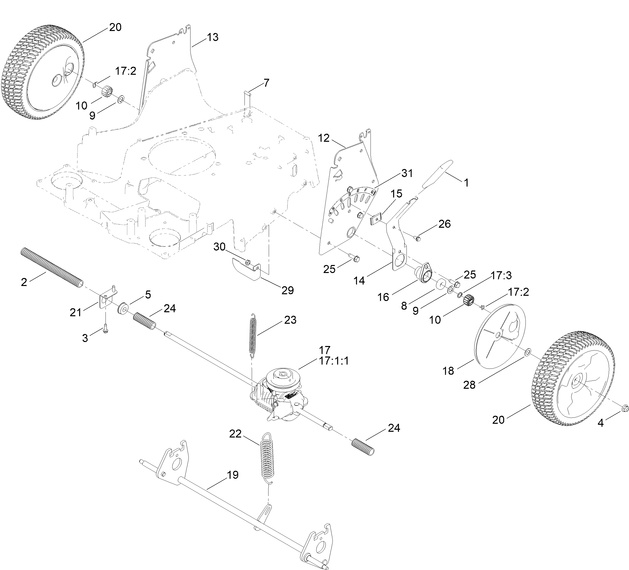

Toro 21810 Timemaster Mower

Rear Wheel and HeightofCut Assembly

No.	Part	Description	Price £
1	HY-137-4796	GRIP-LEVER, LIFT	5.60	Add to Cart (Order)
2	HY-121-5799	Call 01732 441333
3	HY-49-2040	SCREW	2.34	Add to Cart
4	HY-119-4042	NUT-HF, NI	0.77	Add to Cart (Order)
5	HY-104-8699	BEARING	4.81	Add to Cart (Order)
7	HY-106-5681	Call 01732 441333
8	HY-133-2603	BEARING-BALL	27.22	Add to Cart (Order)
9	HY-110-7191	WASHER-THRUST	2.09	Add to Cart
10	HY-131-5399	GEAR-PINION, 15T	4.32	Add to Cart (Order)
12	HY-120-3342	Call 01732 441333
13	HY-120-3343	Call 01732 441333
14	HY-120-5208	ARM-SPRING, REAR	18.12	Add to Cart (Order)
15	HY-120-5209	KEY-ARM, SPRING	4.06	Add to Cart (Order)
16	HY-136-5929	Call 01732 441333
17	HY-131-9665	TRANSMISSION KIT	196.78	Add to Cart (Order)
17:1:1	HY-130-2370	TRANSMISSION PULLEY KI	30.25	Add to Cart (Order)
17:2	HY-130-2369	PIN-SNAP	1.22	Add to Cart (Order)
17:3	HY-32151-61	RING-RETAINING	2.77	Add to Cart (Order)
18	HY-120-6233	COVER-GEAR	12.83	Add to Cart (Order)
19	HY-140-4048	Call 01732 441333
20	HY-125-2509	Call 01732 441333
21	HY-138-3233	Call 01732 441333
22	HY-120-7026	Call 01732 441333
23	HY-120-7027	SPRING-EXTENSION	9.28	Add to Cart (Order)
24	HY-121-5800	Call 01732 441333
25	HY-701243	Call 01732 441333
26	HY-32144-4	SCREW-HWH	1.48	Add to Cart
28	HY-36-4780	WASHER-PLAIN	7.66	Add to Cart (Order)
29	HY-138-5338	Call 01732 441333
30	HY-137-3089	Call 01732 441333
31	HY-125-2497	Call 01732 441333
