Toro 02657 Prostripe 560 Roller Mower

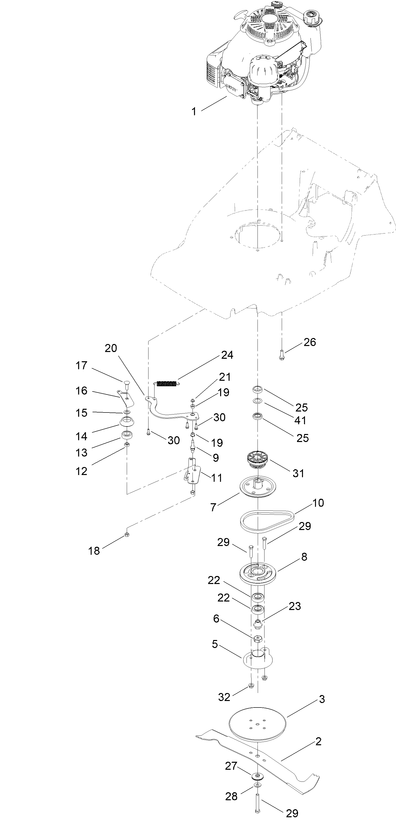

Engine and Blade Assembly

No.	Part	Description	Price £
2	HY-134-1849	Call 01732 441333
3	HY-410057W	DISC	27.11	Add to Cart
5	HY-134-2252	SPACER	14.60	Add to Cart (Order)
6	HY-134-2648	NUT	8.42	Add to Cart (Order)
7	HY-134-4249	PULLEY HALF DRIVE BBC	46.04	Add to Cart (Order)
8	HY-134-2590	DRUM	31.49	Add to Cart (Order)
9	HY-107-0759	BOLT-SHOULDER	11.12	Add to Cart (Order)
10	HY-110-1790	BELT BBC	33.41	Add to Cart (Order)
11	HY-125-1063	PLATE-BRAKE	25.98	Add to Cart (Order)
12	HY-107-0758	SPACER-BEARING	3.32	Add to Cart (Order)
13	HY-38-7820B	Call 01732 441333
14	HY-138-3217	RETAINER-BELT	3.20	Add to Cart (Order)
15	HY-605256S	Call 01732 441333
16	HY-111-8855	PLATE-TENSIONER	2.78	Add to Cart (Order)
17	HY-119-4162	SCREW-CARR	1.92	Add to Cart (Order)
18	HY-603773L	Call 01732 441333
19	HY-130-2377	BUSHING-FLANGE	2.14	Add to Cart
20	HY-134-3773	BBC ANCHOR PLATE ASSY	14.60	Add to Cart (Order)
21	HY-137-3005	NUT-HF	0.48	Add to Cart (Order)
22	HY-134-0325	BEARING	22.34	Add to Cart
23	HY-111-8895	NUT	7.67	Add to Cart (Order)
24	HY-108-3792	SPRING-TENSION, BRAKE	12.36	Add to Cart (Order)
25	HY-111-8828	SPACER	4.00	Add to Cart (Order)
26	HY-09349	SCREW	1.62	Add to Cart
27	HY-134-3973	SPACER	10.12	Add to Cart (Order)
28	HY-134-3191	WASHER	0.53	Add to Cart (Order)
29	HY-134-1681	BOLT, UNF 3/8X1.3/4 (G	2.30	Add to Cart (Order)
30	HY-09575	SCREW HD TAPTITE(P)	1.62	Add to Cart
31	HY-134-2714	PULLEY	25.27	Add to Cart (Order)
32	HY-139-1706	NUT-FLANGE, LOCK	4.18	Add to Cart (Order)
41	HY-134-2253	SPRING-DISK	1.04	Add to Cart (Order)
