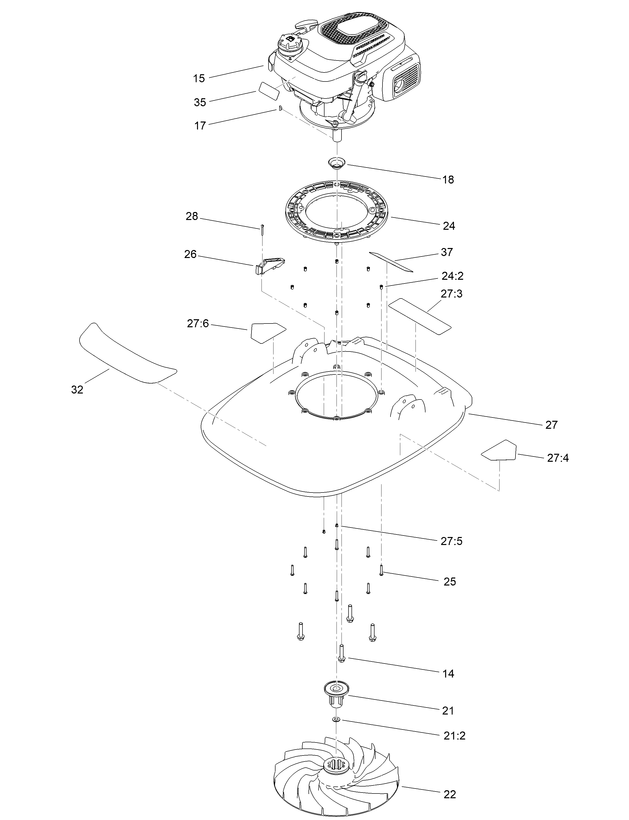

Engine and Deck Assembly
| No. | Part | Description | Price £ | |
|---|---|---|---|---|
| 14 | HY-111-2157 | Call 01732 441333 | ||
| 15 | HY-134-6432 | Call 01732 441333 | ||
| 17 | HY-1662KE | Call 01732 441333 | ||
| 18 | HY-H190118 | Call 01732 441333 | ||
| 21 | HY-H290011 | SPACER KIT (DRIVE) | 28.66 | Add to Cart (Order) |
| 21:2 | HY-09479 | WASHER | 1.62 | Add to Cart |
| 22 | HY-H192268 | IMPELLOR | 78.02 | Add to Cart (Order) |
| 24 | HY-H290003 | ENGINE MOUNT FRAME | 31.85 | Add to Cart (Order) |
| 24:2 | HY-H192266 | INSERT-BRASS | 0.53 | Add to Cart (Order) |
| 25 | HY-H292004 | SET-SCREW | 1.44 | Add to Cart (Order) |
| 26 | HY-H292269 | UPSTOP BRACKET | 6.97 | Add to Cart (Order) |
| 27 | HY-111-6003 | DECK ASM | 104.89 | Add to Cart (Order) |
| 27:3 | HY-111-5393 | DECAL-WARNING LABEL | 9.94 | Add to Cart (Order) |
| 27:4 | HY-94-8072 | Call 01732 441333 | ||
| 27:5 | HY-H292280 | Call 01732 441333 | ||
| 27:6 | HY-111-9826 | DECAL-DANGER | 4.07 | Add to Cart (Order) |
| 28 | HY-H292279 | SETSCREW | 1.34 | Add to Cart |
| 32 | HY-111-5349 | Call 01732 441333 | ||
| 35 | HY-130-8322 | Call 01732 441333 | ||
| 37 | HY-133-8062 | Call 01732 441333 | ||
