Stihl RT4097.0 SX

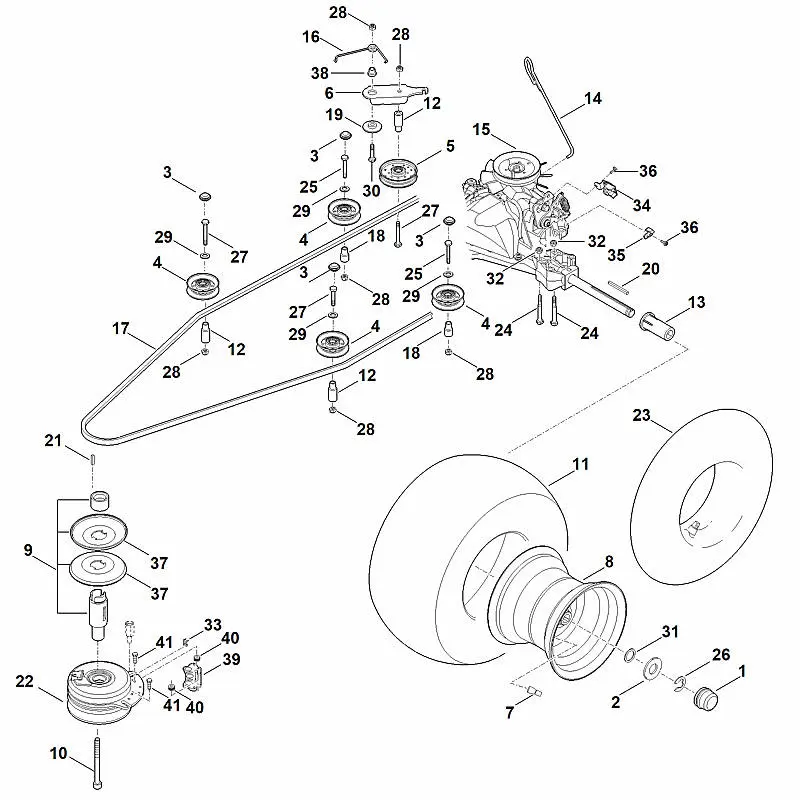

Gear Box, Rear Wheel, Blade Clutch

No.	Part	Description	Price £
99	SL-61707000435	WHEEL ASSEMBLY	127.00	Add to Cart (Order)
1	SL-61707087420	CAP	4.25	Add to Cart (Order)
2	SL-61707630910	WASHER	4.84	Add to Cart (Order)
3	SL-61607060731	COVER	2.76	Add to Cart (Order)
4	SL-61707606617	PULLEY	18.20	Add to Cart (Order)
5	SL-61707601292	IDLER PULLEY	18.40	Add to Cart (Order)
6	SL-61707042200	BOLT LEVER	14.10	Add to Cart (Order)
7	SL-00007317700	VALVE	7.60	Add to Cart (Order)
8	SL-61707603920	RIM 8, 5-8	89.50	Add to Cart (Order)
9	SL-61707002511	V-BELT PULLEY	89.50	Add to Cart (Order)
10	SL-90453489050	SOCKET HEAD SCREW M7/1	4.14	Add to Cart (Order)
11	SL-61707049525	TYRE 18X8,5-8	100.00	Add to Cart (Order)
12	SL-61607642802	SPACER SLEEVE	9.90	Add to Cart (Order)
13	SL-61657642800	SPACER SLEEVE	9.90	Add to Cart (Order)
14	SL-61656430100	LEVER	18.20	Add to Cart (Order)
15	SL-61656400101	GEAR HEAD	964.00	Add to Cart (Order)
15	SL-61656400100	GEAR BOX	964.00	Add to Cart (Order)
16	SL-61707034920	TORSION SPRING	2.76	Add to Cart (Order)
17	SL-61657042121	V-BELT	48.50	Add to Cart (Order)
18	SL-61707642805	SPACER SLEEVE	8.28	Add to Cart (Order)
19	SL-61707031920	SHOULDER BEARING	3.79	Add to Cart (Order)
20	SL-94714351622	KEY B3/16"SQX21/4"	2.41	Add to Cart (Order)
21	SL-94714351602	KEY B1/4"SQX1"	2.30	Add to Cart (Order)
22	SL-61701602011	BLADE CLUTCH	240.00	Add to Cart (Order)
22	SL-61701602010	BLADE CLUTCH	250.08	Add to Cart (Order)
23	SL-00007046703	HOSE 20X10.0 - 8	33.00	Add to Cart (Order)
24	SL-90073181980	HEXAGON HEAD SCREW M8X	2.08	Add to Cart (Order)
25	SL-90083191950	HEXAGONAL BOLT	1.73	Add to Cart
26	SL-94606241500	E-CLIP DIN6799-15	0.46	Add to Cart
27	SL-90083191970	HEXAGONAL BOLT	2.08	Add to Cart (Order)
28	SL-92122601100	NUT	0.56	Add to Cart
29	SL-92910200180	WASHER	0.35	Add to Cart
30	SL-90073181880	HEXAGONAL BOLT	1.49	Add to Cart (Order)
31	SL-92960211657	WASHER 19X26X1.5	0.58	Add to Cart (Order)
32	SL-92162611100	HEXAGON NUT M8	0.80	Add to Cart
33	SL-61401624500	CLIP	1.96	Add to Cart (Order)
34	SL-61704032310	BRACKET	4.25	Add to Cart (Order)
35	SL-61706471100	ELBOW	1.62	Add to Cart (Order)
36	SL-90394880958	SELF-TAPPING SCREW DIN	0.80	Add to Cart
37	SL-61707002505	V-BELT PULLEY	55.00	Add to Cart (Order)
38	SL-61707642720	COLLAR BUSHING	6.32	Add to Cart (Order)
39	SL-61400071800	SERVICE KIT	61.00	Add to Cart (Order)

Stihl RT4097.0 SX

Gear Box, Rear Wheel, Blade Clutch

Other Product Diagrams

Blade Drive

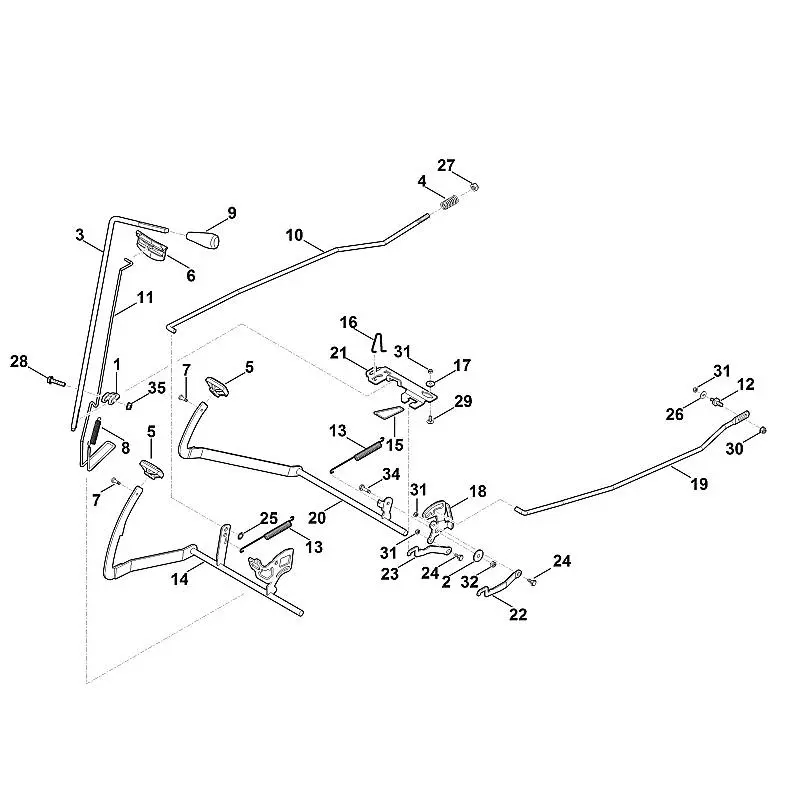

Brake, Parking Brake, Control Lever

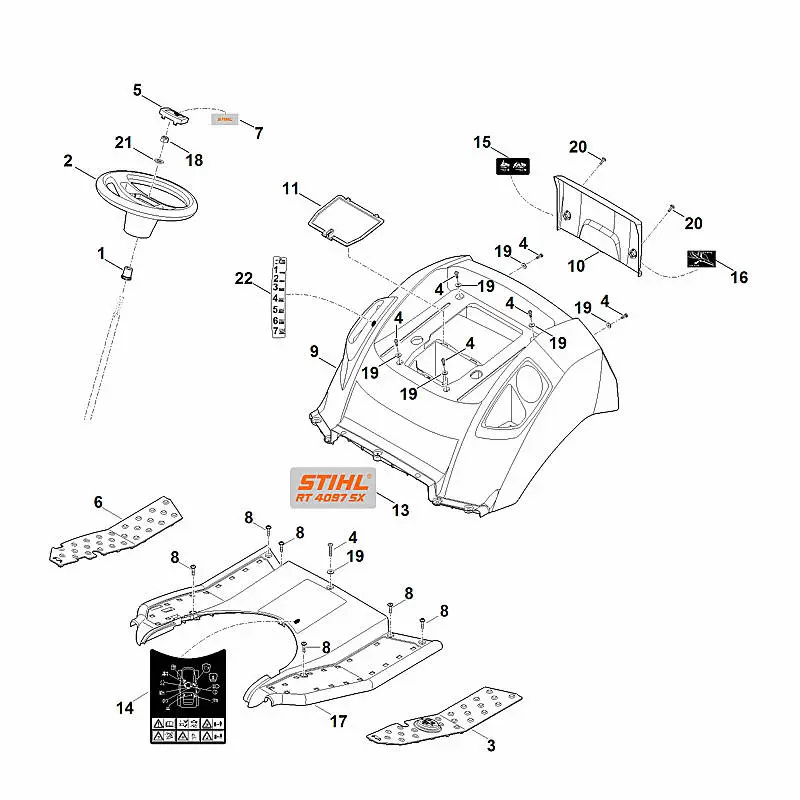

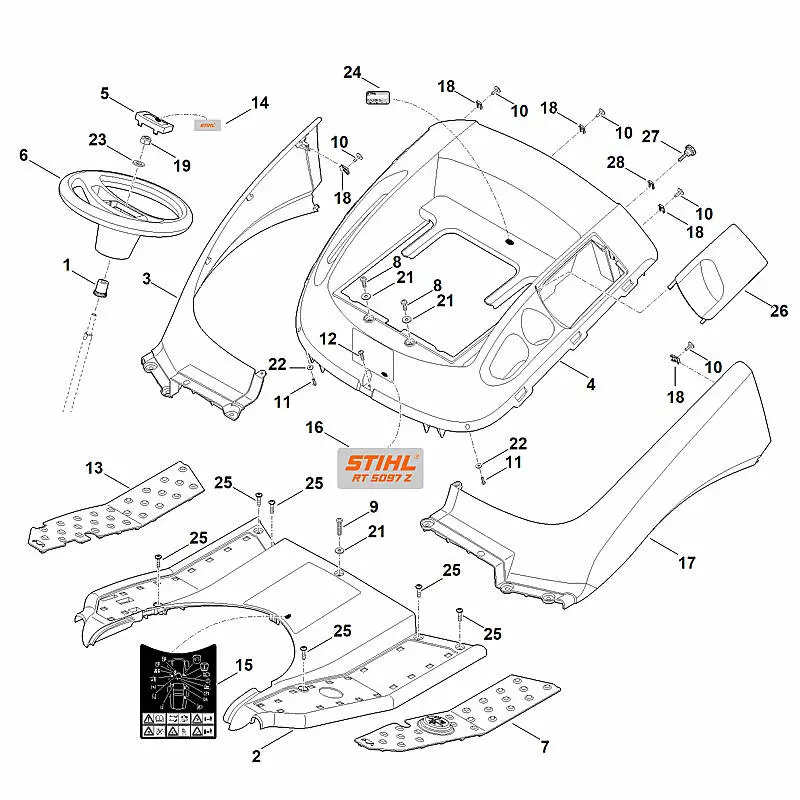

Cover

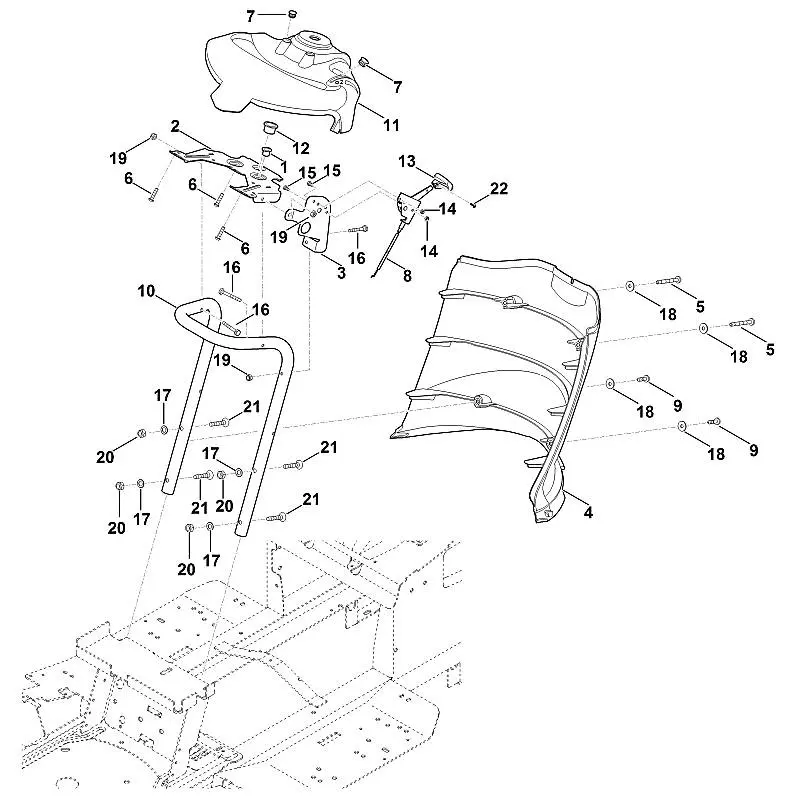

Dashboard

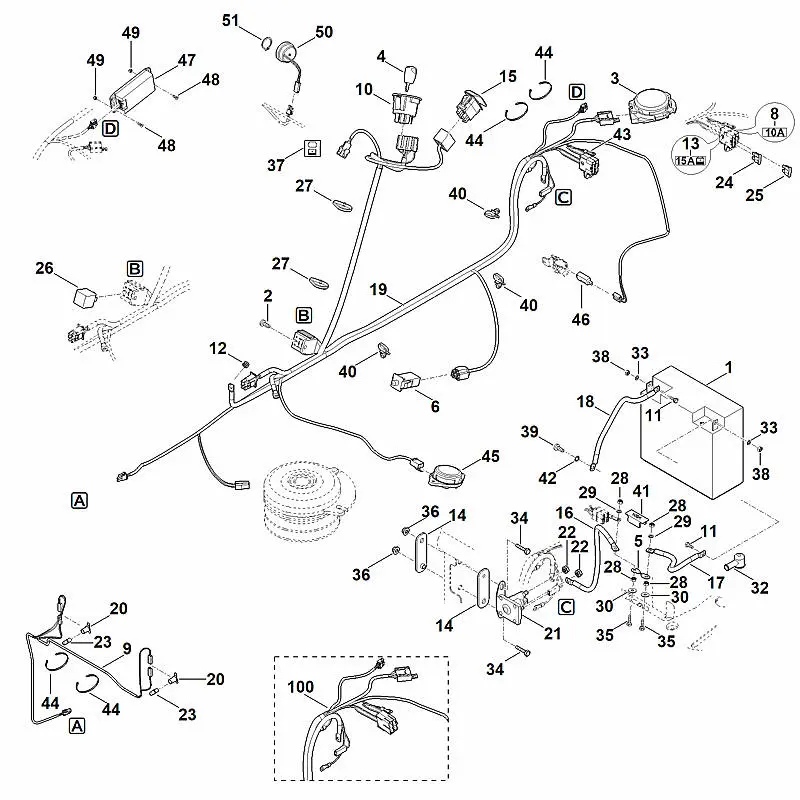

Electrical Equipment

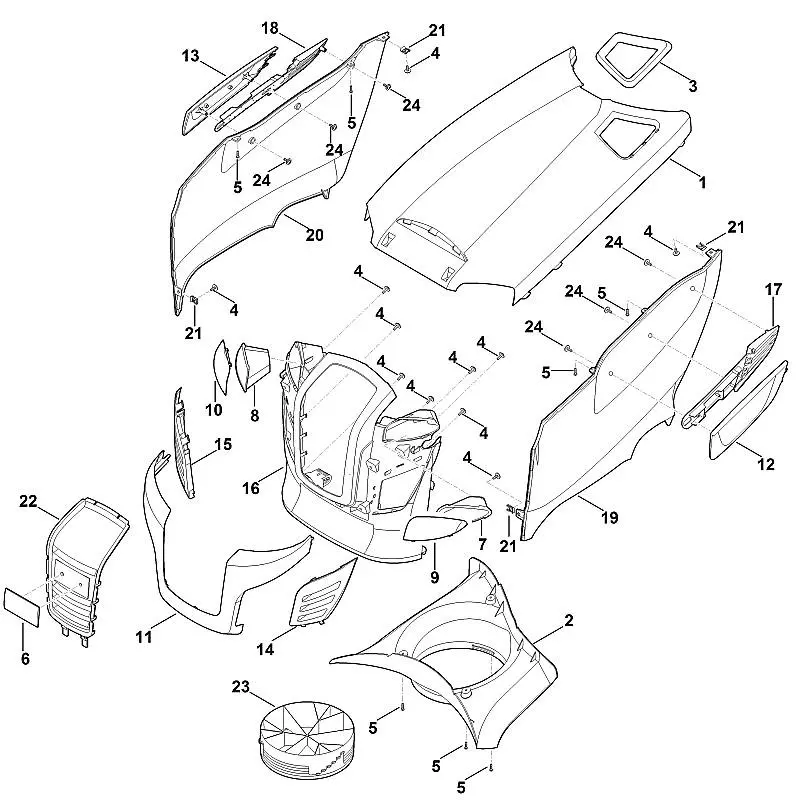

Engine Hood

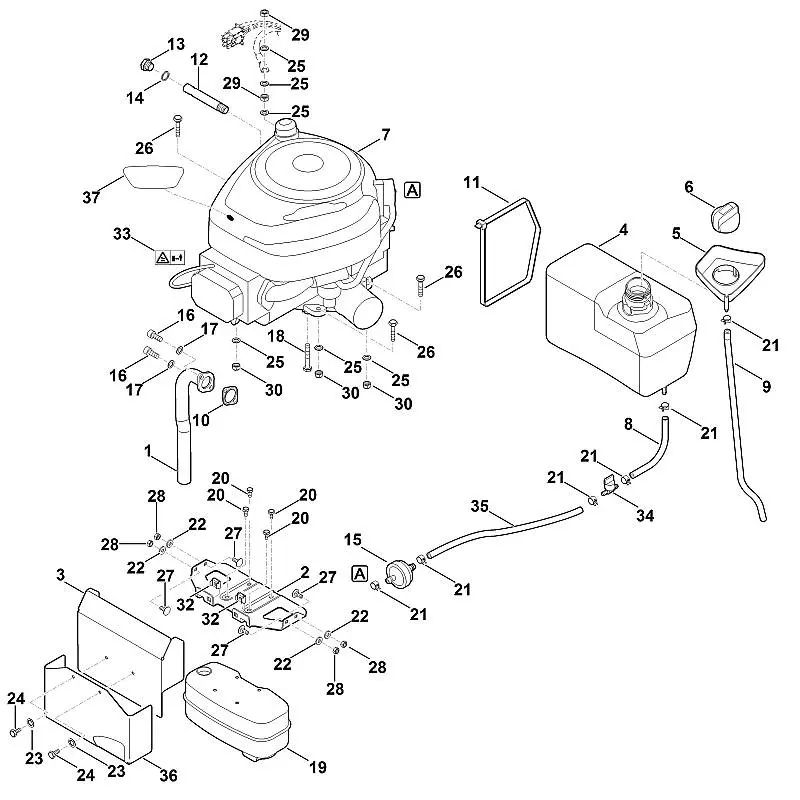

Engine, Tank

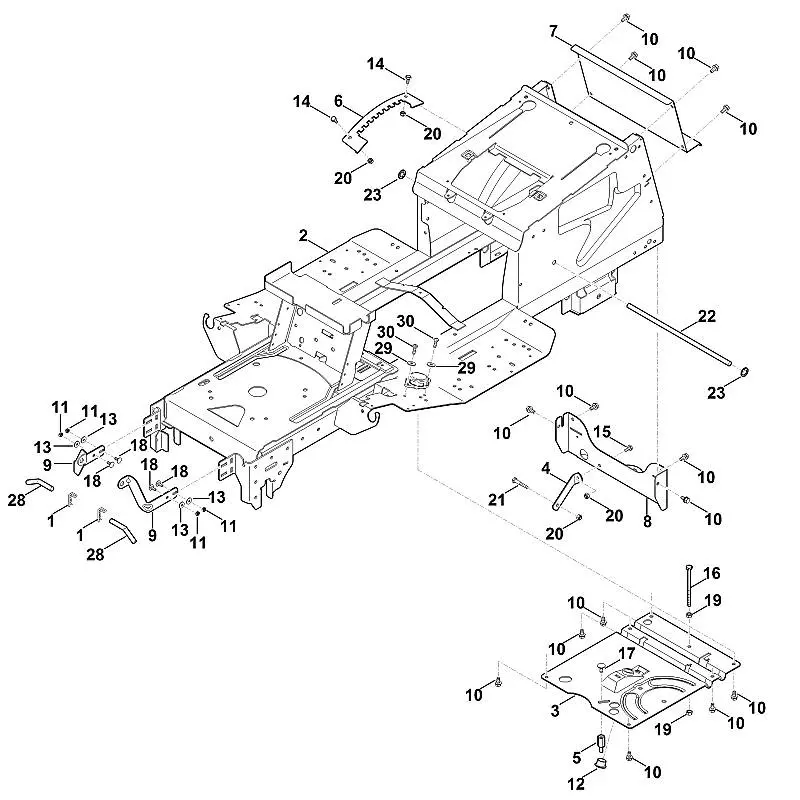

Frame

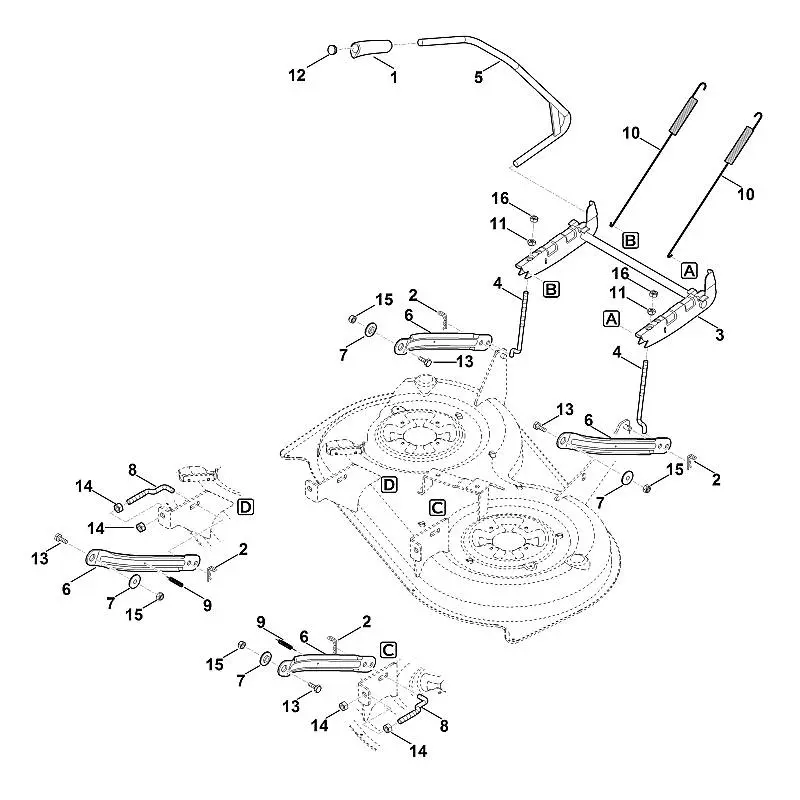

Height Adjustment

Mowing Deck Housing

Seat

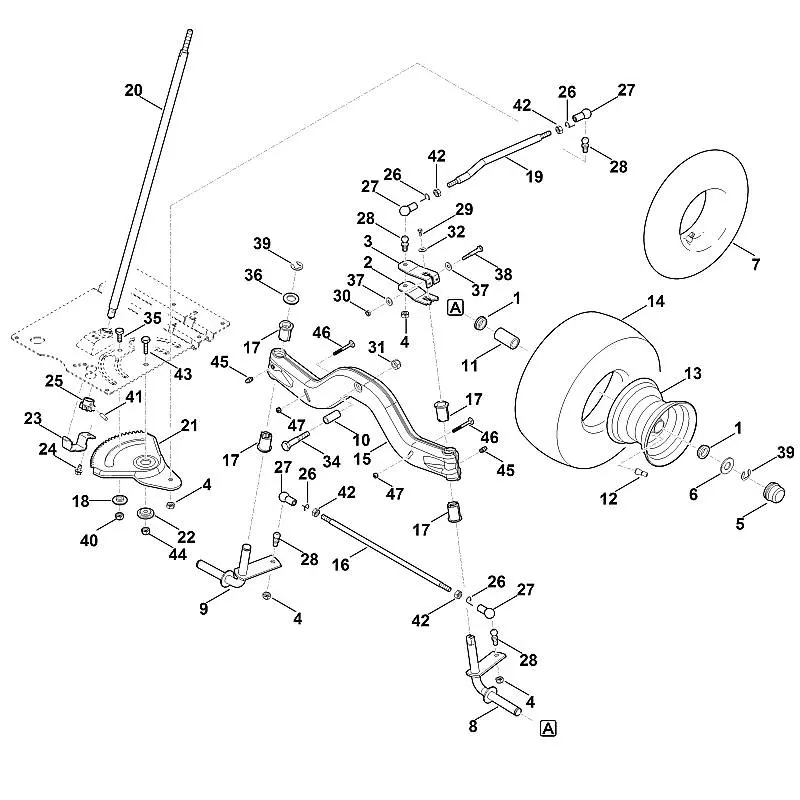

Steering, Front Wheel
