Stihl KM85R

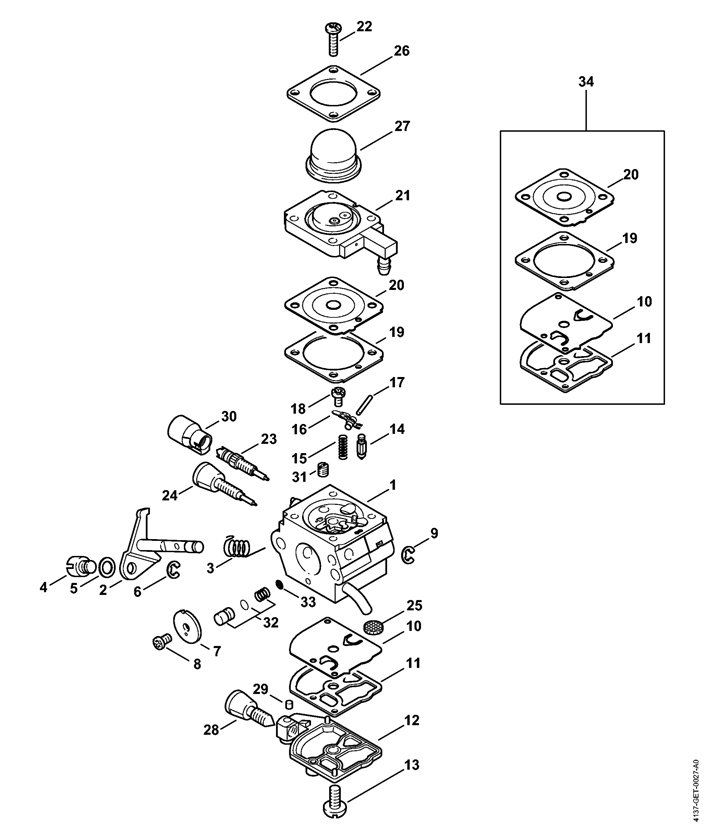

Carburettor (4137/22)

No.	Part	Description	Price £
1	SL-41371200622	CARBURETTOR 4137/22	70.91	Add to Cart (Order)
2	SL-41371207100	THROTTLE SHAFT WITH LE	15.25	Add to Cart (Order)
3	SL-11231223000	TORSION SPRING	2.29	Add to Cart (Order)
4	SL-41281218900	PIN	8.68	Add to Cart (Order)
5	SL-41371218600	WASHER	1.03	Add to Cart
6	SL-11201229000	RETAINING RING	2.09	Add to Cart (Order)
7	SL-42291213303	THROTTLE SHUTTER	4.40	Add to Cart (Order)
8	SL-11251227403	ROUND HEADED SCREW	4.36	Add to Cart (Order)
9	SL-11251229001	CLIP	2.09	Add to Cart
10	SL-11291214800	DIAPHRAGM	13.20	Add to Cart
11	SL-11231290905	GASKET	2.17	Add to Cart
12	SL-41341210802	END COVER	15.08	Add to Cart (Order)
13	SL-11201227800	SCREW	4.36	Add to Cart
14	SL-41161215100	NEEDLE	9.43	Add to Cart (Order)
15	SL-11201223004	SPRING	2.29	Add to Cart (Order)
16	SL-11251215000	LEVER	3.31	Add to Cart (Order)
17	SL-11201219200	SPINDLE	1.26	Add to Cart (Order)
18	SL-11201226600	COLLAR SCREW	4.15	Add to Cart (Order)
19	SL-42291290901	GASKET	2.17	Add to Cart
20	SL-42291214700	Call 01732 441333
21	SL-43141202200	FLANGE	29.60	Add to Cart (Order)
22	SL-42261227100	SCREW	4.15	Add to Cart (Order)
23	SL-42291226701	HIGH SPEED ADJUSTMENT	9.43	Add to Cart (Order)
24	SL-42291226800	LOW SPEED ADJUSTMENT S	9.43	Add to Cart (Order)
25	SL-11231217800	STRAINER	3.25	Add to Cart (Order)
26	SL-41401210800	END COVER	15.08	Add to Cart (Order)
27	SL-42261212700	BULB	4.90	Add to Cart
28	SL-41401226200	IDLE SPEED ADJUSTMENT	9.43	Add to Cart (Order)
29	SL-11251224200	BALL	1.58	Add to Cart
30	SL-42291212701	CAP	5.63	Add to Cart
31	SL-42291215602	FIXED JET	9.76	Add to Cart (Order)
32	SL-43140071053	PUMP PISTON KIT	10.48	Add to Cart (Order)
33	SL-11201217801	SCREEN	3.25	Add to Cart (Order)
34	SL-42290071060	KIT	26.08	Add to Cart (Order)
