Stihl FS480

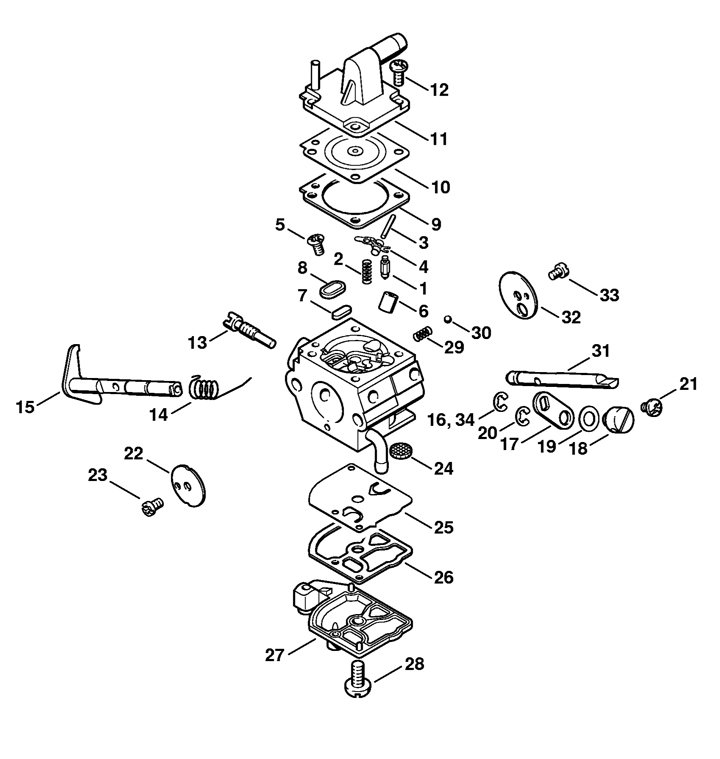

Carburettor (C1QS34) (46.2003)

No.	Part	Description	Price £
	SL-41281200651	Call 01732 441333
1	SL-Z000018Z000	INLET NEEDLE	9.43	Add to Cart (Order)
2	SL-11201223004	SPRING	2.29	Add to Cart (Order)
3	SL-11201219200	SPINDLE	1.26	Add to Cart (Order)
4	SL-11251215000	LEVER	3.31	Add to Cart (Order)
5	SL-11201226600	COLLAR SCREW	4.15	Add to Cart (Order)
6	SL-41281215401	JET	9.76	Add to Cart (Order)
7	SL-41191210700	SEALING PLATE	3.58	Add to Cart (Order)
8	SL-41291210700	SEALING PLATE	3.55	Add to Cart (Order)
9	SL-41291290902	GASKET	2.17	Add to Cart
10	SL-41291214700	DIAPHRAGM	13.20	Add to Cart (Order)
11	SL-41341210801	END COVER	15.08	Add to Cart (Order)
12	SL-11201226601	COLLAR SCREW	4.15	Add to Cart (Order)
13	SL-41281226300	Call 01732 441333
14	SL-11231223000	TORSION SPRING	2.29	Add to Cart (Order)
15	SL-41281207150	THROTTLE SHAFT WITH LE	16.24	Add to Cart (Order)
16	SL-11201229000	RETAINING RING	2.09	Add to Cart (Order)
17	SL-41341237300	LEVER	3.19	Add to Cart (Order)
18	SL-41281218901	PIN	8.68	Add to Cart (Order)
19	SL-41371218600	WASHER	1.03	Add to Cart
20	SL-11201229000	RETAINING RING	2.09	Add to Cart (Order)
21	SL-90793190280	PAN HEAD SCREW	0.56	Add to Cart
22	SL-11231213300	Call 01732 441333
23	SL-11201227400	BUTTON HEAD SCREW	4.36	Add to Cart (Order)
24	SL-11231217800	STRAINER	3.25	Add to Cart (Order)
25	SL-11291214800	DIAPHRAGM	13.20	Add to Cart
26	SL-11231290905	GASKET	2.17	Add to Cart
27	SL-41281210800	COVER PLATE	15.08	Add to Cart (Order)
28	SL-11201227800	SCREW	4.36	Add to Cart
29	SL-41191223002	SPRING	2.29	Add to Cart (Order)
30	SL-41191224200	BALL	1.58	Add to Cart (Order)
31	SL-41341213000	CHOKE SPINDLE	14.27	Add to Cart (Order)
32	SL-41281212900	CHOKE SHUTTER	4.40	Add to Cart (Order)
33	SL-11251227403	ROUND HEADED SCREW	4.36	Add to Cart (Order)
	SL-41340071060	Call 01732 441333
34	SL-11251229001	CLIP	2.09	Add to Cart

Stihl FS480

Carburettor (C1QS34) (46.2003)
