Stiga SBC252D 287421002/17

SKU:

287421002/17 Engine

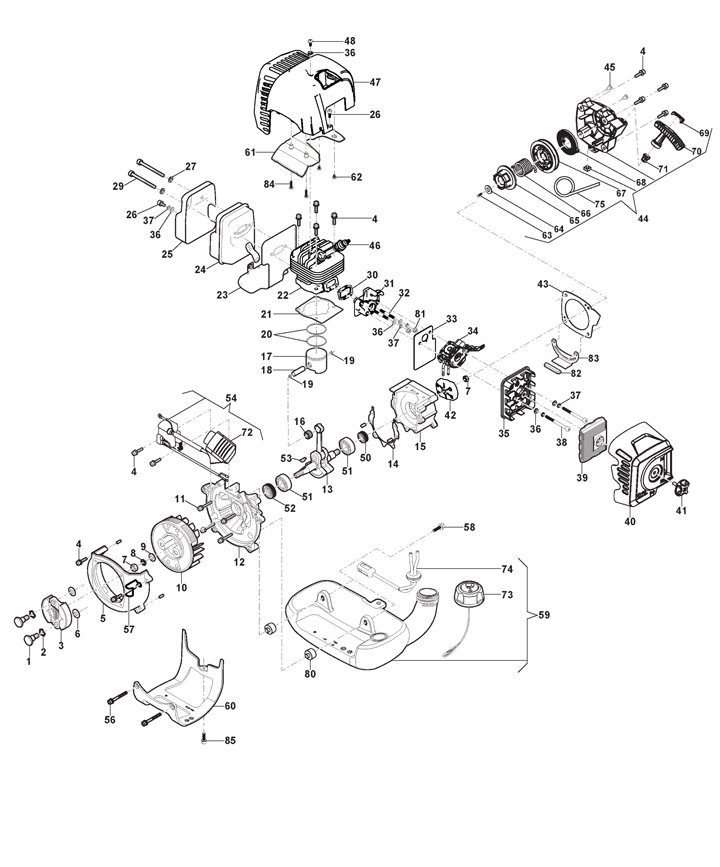

Stiga SBC252D 287421002/17 - Engine
No.PartDescriptionPrice £
1MW-118804038/0SCREW1.40Add to Cart (out of stock)
2MW-118804045/0WASHER1.20Add to Cart (out of stock)
3MW-118804000/0CLUTCH ASSEMBLY11.34Add to Cart (out of stock)
4MW-112789008/0Call 01732 441333
5MW-118804033/0TRANSMISSION SUPPORT C12.67Add to Cart (out of stock)
6MW-118804046/0WASHER1.20Add to Cart (out of stock)
7MW-112155015/0SELF-GRIP NUT M81.69Add to Cart
8MW-112369500/0SPRING WASHER D=81.40Add to Cart
9MW-112521350/0WASHER M8 8.4X16X1.61.55Add to Cart (out of stock)
10MW-118804013/0FLYWHEEL22.31Add to Cart (out of stock)
11MW-2135130TORX SCREW M5 X 351.40Add to Cart (out of stock)
12MW-118804025/0FRONT-HALF CRANKCASE16.88Add to Cart (out of stock)
13MW-118803990/0CRANKSHAFT43.64Add to Cart (out of stock)
14MW-118804079/0CRANKCASE GASKET1.55Add to Cart (out of stock)
15MW-118804027/0BACK-HALF CRANKCASE15.42Add to Cart (out of stock)
16MW-118804019/0NEEDLE BEARING 10X14X14.22Add to Cart (out of stock)
17MW-118804036/0PISTON 51.7CC11.53Add to Cart (out of stock)
18MW-118804040/0PISTON PIN1.82Add to Cart (out of stock)
19MW-118804049/0PISTON PIN WASHER1.20Add to Cart (out of stock)
20MW-118804023/0PISTON RING 51.7CC3.79Add to Cart (out of stock)
21MW-118804080/0CYLINDER GASKET1.82Add to Cart (out of stock)
22MW-118804035/0CYLINDER 51.7CC47.87Add to Cart (out of stock)
23MW-118804085/0MUFFLER GASKET6.47Add to Cart (out of stock)
24MW-118803992/0MUFFLER36.59Add to Cart (out of stock)
25MW-118804048/0MUFFLER GUARD5.35Add to Cart (out of stock)
26MW-2135040TORX SCREW M5 X 181.38Add to Cart (out of stock)
27MW-112521330/0WASHER M6 6.4X12X1.61.55Add to Cart (out of stock)
29MW-118801180/0M6 X 60 HEX SCREW1.69Add to Cart (out of stock)
30MW-118804081/0INLET PIPE GASKET1.69Add to Cart (out of stock)
31MW-118804064/0INTAKE MANIFOLD3.38Add to Cart (out of stock)
32MW-118804549/0DOWEL SCREW M5 X 381.20Add to Cart (out of stock)
33MW-118804083/0CARBURETTOR GASKET1.55Add to Cart (out of stock)
34MW-118804009/0CARBURETTOR50.68Add to Cart (out of stock)
35MW-118804063/0AIR FILTER BASE1.55Add to Cart (out of stock)
36MW-112521320/0WASHER M5 5.3X10X1 UNI1.55Add to Cart (out of stock)
37MW-112581500/0GROWER WASHER M5 UNI 11.55Add to Cart (out of stock)
38MW-2135250Call 01732 441333
39MW-118804547/0PAPER AIR FILTER7.74Add to Cart (out of stock)
40MW-118803968/0AIR FILTER COVER [YELL5.35Add to Cart (out of stock)
41MW-118803174/0AIR FILTER KNOB [GREY]2.68Add to Cart (out of stock)
42MW-118803996/0STARTER CUP4.37Add to Cart (out of stock)
43MW-118804051/0STARTER GASKET1.82Add to Cart (out of stock)
44MW-118803994/0RECOIL ASSEMBLY C/W YE23.36Add to Cart (out of stock)
45MW-123878121/0SCREW 4.2 X 131.69Add to Cart
46MW-3210024Call 01732 441333
47MW-118803970/0Call 01732 441333
48MW-2135180Call 01732 441333
50MW-118801188/0OIL SEAL 12 X 22 X 71.33Add to Cart (out of stock)
51MW-3112040BEARING 547056LV 620214.64Add to Cart (out of stock)
52MW-118804020/0SEAL RING1.82Add to Cart (out of stock)
53MW-123072002/0FLYWHEEL KEY1.33Add to Cart (out of stock)
54MW-118804864/0IGNITION COIL32.32Add to Cart (out of stock)
56MW-2135110TORX SCREW M5 X 451.40Add to Cart (out of stock)
57MW-118804055/0THROTTLE LINE CLAMP1.55Add to Cart (out of stock)
58MW-112760475/0SCREW TC M5 X 201.97Add to Cart (out of stock)
59MW-118804004/0FUEL TANK ASSEMBLY18.02Add to Cart (out of stock)
60MW-118803962/0FUEL TANK SUPPORT9.00Add to Cart (out of stock)
61MW-118804087/0AIR FILTER GUIDE5.92Add to Cart (out of stock)
62MW-112727815/0SCREW 8P X 3/81.40Add to Cart (out of stock)
63MW-2135180Call 01732 441333
64MW-112523020/0WASHER M5 5.5X15X1.6 U1.55Add to Cart (out of stock)
65MW-118803975/0STARTER CAM3.24Add to Cart (out of stock)
66MW-118804061/0SPRING2.40Add to Cart (out of stock)
67MW-118803976/0STARTER PULLEY6.76Add to Cart (out of stock)
68MW-118804060/0STARTER SPRING6.05Add to Cart (out of stock)
69MW-118804069/0STARTER HANDLE INSERT1.33Add to Cart (out of stock)
70MW-118803984/0STARTER HANDLE1.97Add to Cart (out of stock)
71MW-118804068/0Call 01732 441333
72MW-118803163/0SPARK PLUG CAP6.20Add to Cart (out of stock)
73MW-322735152/1Call 01732 441333
74MW-118804005/0FUEL PIPE SET3.10Add to Cart (out of stock)
75MW-118803181/0RECOIL ROPE2.68Add to Cart
80MW-118804548/0GROMMET1.20Add to Cart (out of stock)
81MW-112154330/0Call 01732 441333
82MW-118804550/0Call 01732 441333
83MW-118804551/0FUEL TANK PRESSING PLA2.26Add to Cart (out of stock)
84MW-112728099/1SELF-TAPPING SCREW 4.21.55Add to Cart (out of stock)
85MW-6981102Call 01732 441333

Other Product Diagrams

Stiga SBC252D 287421002/17 - Transmission

287421002/17 Transmission
