Stiga Estate 3098H 2T2620281/ST1

SKU:

3098H 2T2620281/ST1 Cutting plate

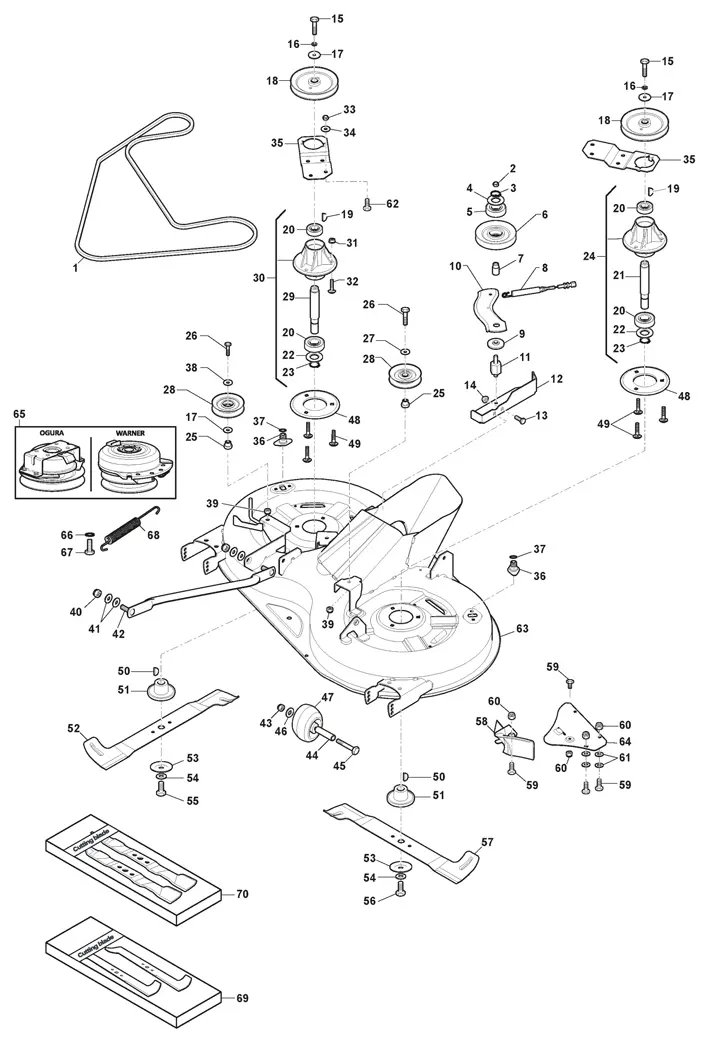

Stiga Estate 3098H 2T2620281/ST1 - Cutting plate
No.PartDescriptionPrice £
1MW-135061509/0DECK DRIVE BELT AA9687.71Add to Cart (Order)
2MW-112293201/0FLANGED HEXAGON NUT M81.61Add to Cart (Order)
3MW-112524010/0Call 01732 441333
4MW-112610800/0CIRCLIP D=351.61Add to Cart (Order)
5MW-119216048/0BEARING 6202 2RS C317.41Add to Cart
6MW-125601595/0BLADE IDLER PULLEY33.48Add to Cart (Order)
7MW-125601595/0Call 01732 441333
8MW-125160052/0Call 01732 441333
9MW-382004618/0DECK ENGAGE CABLE21.70Add to Cart
10MW-325318343/0TENSION CONTROL LEVER12.92Add to Cart (Order)
11MW-125160049/0SPACER6.96Add to Cart (Order)
12MW-325785391/0SUPPORT BRACKET20.82Add to Cart (Order)
13MW-112818690/0SCREW M8X20 UNI 5732 81.70Add to Cart (Order)
14MW-112154210/0SELF-LOCK WINGED NUT M1.61Add to Cart
15MW-112793102/0SCREW TE M8X20 UNI 5731.46Add to Cart (Order)
16MW-112793102/0SCREW TE M8X20 UNI 5731.46Add to Cart (Order)
17MW-125670007/0FIXING WASHER1.87Add to Cart (Order)
18MW-125601604/0BLADE SHAFT PULLEY49.55Add to Cart (Order)
19MW-112139480/0KEY 6X6X20 UNI6604-A 61.61Add to Cart (Order)
20MW-119216047/0BEARING 6204-C-2HRS15.00Add to Cart (Order)
21MW-125020804/0BLADE SHAFT33.48Add to Cart (Order)
22MW-119216047/0Call 01732 441333
22MW-325160501/1DUST COVER WASHER1.46Add to Cart (Order)
23MW-112609260/0CIRCLIP FOR SHAFT D=201.74Add to Cart (Order)
24MW-382207204/1BLADE SHAFT ASSEMBLY97.08Add to Cart (Order)
25MW-125160110/0PULLEY SPACER3.22Add to Cart (Order)
26MW-112691115/0HEX-HEAD SCREW M8 X 401.46Add to Cart (Order)
27MW-125160082/0Call 01732 441333
28MW-325601599/0STEEL PULLEY18.20Add to Cart
29MW-125020805/0RIGHT BLADE SHAFT33.48Add to Cart (Order)
30MW-382207205/1BLADE SHAFT ASSEMBLY97.08Add to Cart
31MW-125601613/0PLASTIC PULLEY12.19Add to Cart
32MW-112818690/0SCREW M8X20 UNI 5732 81.70Add to Cart (Order)
33MW-112154210/0SELF-LOCK WINGED NUT M1.61Add to Cart
34MW-112523060/0WASHER M8 8.4X24X2 UNI1.46Add to Cart (Order)
35MW-325774617/0BLADE SHAFT BRACKET12.98Add to Cart (Order)
36MW-325033086/0WASHING CONNECTION1.46Add to Cart (Order)
37MW-119035000/0O RING 10.77 X 2.624.81Add to Cart (Order)
38MW-112523060/0WASHER M8 8.4X24X2 UNI1.46Add to Cart (Order)
39MW-112293201/0FLANGED HEXAGON NUT M81.61Add to Cart (Order)
40MW-112156602/0LOW SELF-LOCKING NUT M1.34Add to Cart (Order)
41MW-119035000/0Call 01732 441333
42MW-382000565/1BALANCE ROD19.62Add to Cart (Order)
43MW-112293201/0FLANGED HEXAGON NUT M81.61Add to Cart (Order)
44MW-125160072/0WHEEL SPACER3.76Add to Cart (Order)
45MW-325670008/1ANTI-FRICTION WASHER 11.46Add to Cart (Order)
46MW-112521350/0WASHER M8 8.4X16X1.61.46Add to Cart (Order)
47MW-382000565/1Call 01732 441333
48MW-325160505/0REINFORCEMENT DISC12.19Add to Cart (Order)
49MW-112818700/0SCREW M8X25 UNI 5732 81.46Add to Cart (Order)
50MW-112692100/0Call 01732 441333
51MW-1134-9159-01BLADE HOLDER14.87Add to Cart (Order)
51MW-182700005/0Call 01732 441333
52MW-182004362/0RIGHT WINGED BLADE 98C26.11Add to Cart (Order)
52MW-182004364/0RIGHT MULCHING BLADE 921.96Add to Cart
53MW-112139100/0WOODRUFF KEY 4X6.5 D161.46Add to Cart
54MW-1134-9159-01Call 01732 441333
55MW-125463200/0BLADE BOSS9.04Add to Cart
56MW-112735694/0HEX-HEAD SCREW 3/8"X11.87Add to Cart
57MW-182004363/0LEFT WINGED BLADE 98CM26.11Add to Cart (Order)
58MW-122160400/0Call 01732 441333
59MW-112523080/0WASHER M10 11X30X2.51.46Add to Cart (Order)
60MW-112154510/0LOW SELF-LOCKING NUT M1.46Add to Cart
61MW-112523040/0WASHER M6 6.6X18X1.61.46Add to Cart (Order)
62MW-112793102/0SCREW TE M8X20 UNI 5731.46Add to Cart (Order)
63MW-382564118/0Call 01732 441333
64MW-325785509/0REAR DEFLECTOR PLATE [9.91Add to Cart (Order)
65MW-112791213/1Call 01732 441333
65MW-118399075/1Call 01732 441333
66MW-112523040/0Call 01732 441333
67MW-112793102/0SCREW TE M8X20 UNI 5731.46Add to Cart (Order)
68MW-382564118/0Call 01732 441333
68MW-325785509/0REAR DEFLECTOR PLATE [9.91Add to Cart (Order)
69MW-1134-9226-01WINGED BLADE 98CM/38"65.62Add to Cart (Order)
70MW-1134-9234-01MULCHING BLADE 98CM [S48.20Add to Cart (Order)
