Stiga Combi Pro 110 Q Plus Deck

SKU: SG-2D6311021/ST2

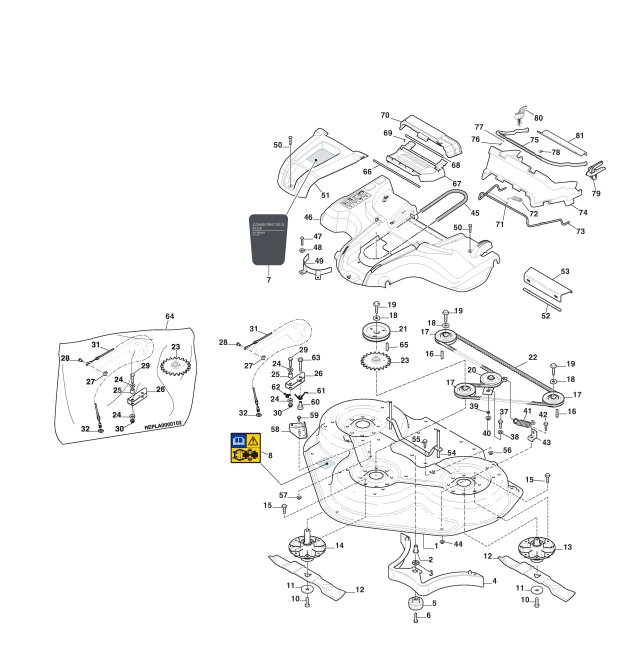

Pro 110 Q Plus – Transmission and Blades

No.PartDescriptionPrice £
1MW-387561535/0DECK CASING 110C [GREY851.68Add to Cart (out of stock)
2MW-1134-5595-01BLIND RIVET NUT7.96Add to Cart (out of stock)
3MW-112604899/0STARLOCK WASHER RPCO 31.55Add to Cart (out of stock)
4MW-1134-5966-01MULCHING PLUG109.79Add to Cart (out of stock)
5MW-322399804/1Call 01732 441333
6MW-112691120/0HEX-HEAD SCREW M8 X 402.40Add to Cart (out of stock)
7MW-114373129/0DECAL "COMBI PRO 110 Q7.67Add to Cart (out of stock)
8MW-9402-3701-01WARNING DECAL13.51Add to Cart (out of stock)
10MW-112692395/2SCREW TE M10 X 553.24Add to Cart (out of stock)
11MW-1134-6211-01BLADE WASHER3.10Add to Cart
12MW-1134-9124-01BLADE BAR ASSEMBLY-110102.35Add to Cart (out of stock)
13MW-387203000/0SHORT BLADE SHAFT ASSE114.02Add to Cart (out of stock)
14MW-387203001/0LONG BLADE SHAFT ASSEM122.46Add to Cart (out of stock)
15MW-9945-0825-16SCREW M6SF M8 X 252.40Add to Cart (out of stock)
16MW-9600-0171-01FLAT KEY 6 X 6 X 25MM3.10Add to Cart (out of stock)
17MW-1137-0015-01PULLEY D=106MM27.02Add to Cart (out of stock)
18MW-1134-5406-01WASHER M10 10.5X35X53.79Add to Cart
19MW-112692395/2SCREW TE M10 X 553.24Add to Cart (out of stock)
20MW-387605019/0TENSION PULLEY ASSEMBL112.62Add to Cart (out of stock)
21MW-1137-0016-01PULLEY D=140MM36.59Add to Cart (out of stock)
22MW-1134-9041-01DRIVE BELT42.68Add to Cart (out of stock)
22MW-9585-0067-00Call 01732 441333
23MW-387178801/0BRAKE DISK81.66Add to Cart (out of stock)
24MW-112523060/0WASHER M8 8.4X24X2 UNI1.55Add to Cart (out of stock)
25MW-1134-1565-04SPACER12.46Add to Cart (out of stock)
26MW-337315009/0BRAKE LEVER8.29Add to Cart (out of stock)
27MW-112436050/0PIN PLATE D=8 (EUROFIX1.82Add to Cart (out of stock)
28MW-125510048/1FIXING PIN2.40Add to Cart (out of stock)
29MW-112691120/0HEX-HEAD SCREW M8 X 402.40Add to Cart (out of stock)
30MW-112155015/0SELF-GRIP NUT M81.69Add to Cart
31MW-187000212/1BRAKE CABLE42.23Add to Cart (out of stock)
32MW-112604896/0STARLOCK WASHER D=61.55Add to Cart (out of stock)
37MW-9959-0820-16FLANGED SCREW M8X20 8.1.55Add to Cart (out of stock)
38MW-9699-0109-02WASHER 10.5 X 40 X 22.40Add to Cart (out of stock)
39MW-1134-7618-01SPACER10.14Add to Cart (out of stock)
40MW-112154220/0SELF-LOCK FLANGED NUT1.55Add to Cart (out of stock)
41MW-1134-0327-00SPRING12.53Add to Cart (out of stock)
42MW-9959-0820-16FLANGED SCREW M8X20 8.1.55Add to Cart (out of stock)
43MW-1134-5415-01SPRING BRACKET14.08Add to Cart (out of stock)
44MW-112154220/0SELF-LOCK FLANGED NUT1.55Add to Cart (out of stock)
45MW-1134-9108-01DECK DRIVE BELT [KEVLA51.16Add to Cart (out of stock)
45MW-1134-9151-01Call 01732 441333
45MW-9585-0159-01Call 01732 441333
45MW-9585-0201-01Call 01732 441333
46MW-337060034/0TRANSMISSION COVER [DA126.70Add to Cart (out of stock)
47MW-9893-0616-16SCREW M6 X 162.12Add to Cart (out of stock)
48MW-112523040/0WASHER M6 6.6X18X1.61.55Add to Cart (out of stock)
49MW-1134-6017-01BELT GUIDE27.80Add to Cart (out of stock)
50MW-9893-0616-16SCREW M6 X 162.12Add to Cart (out of stock)
51MW-337060035/0COVER [YELLOW]30.97Add to Cart (out of stock)
52MW-1137-1090-01BELT GUIDE ROD15.48Add to Cart (out of stock)
53MW-1134-6103-01WEAR PROTECTION PLATE35.20Add to Cart (out of stock)
54MW-1137-1103-01DECK STOP BAR ASSEMBLY87.28Add to Cart (out of stock)
55MW-112800815/0SCREW TE FL M8 X 161.55Add to Cart (out of stock)
56MW-112154220/0SELF-LOCK FLANGED NUT1.55Add to Cart (out of stock)
57MW-112155015/0SELF-GRIP NUT M81.69Add to Cart
58MW-337785043/1BRAKE SUPPORT PLATE17.39Add to Cart (out of stock)
59MW-9959-0820-16FLANGED SCREW M8X20 8.1.55Add to Cart (out of stock)
60MW-137510326/0BRAKE FULCRUM PIN14.29Add to Cart (out of stock)
61MW-137430111/0BRAKE BLADE SPRING 1108.02Add to Cart (out of stock)
62MW-137430112/1BRAKE TRACTION SPRING8.80Add to Cart (out of stock)
63MW-9960-0860-12SCREW M8 X 601.97Add to Cart (out of stock)
64MW-387185523/0Call 01732 441333
65MW-112139489/0KEY 6 X 6 X 703.67Add to Cart (out of stock)
66MW-137294106/0BELT GUIDE14.50Add to Cart (out of stock)
67MW-337060033/0PROTECTION COVER21.83Add to Cart (out of stock)
68MW-1137-1090-01BELT GUIDE ROD15.48Add to Cart (out of stock)
69MW-112728696/0SELF-TAPPING SCREW 4X11.55Add to Cart (out of stock)
70MW-337060032/0PROTECTION COVER7.88Add to Cart (out of stock)
71MW-187000214/0CABLE ASSEMBLY16.61Add to Cart (out of stock)
72MW-122450500/0BRAKE SPRING3.10Add to Cart (out of stock)
73MW-137785059/0SUPPORT ROD53.50Add to Cart (out of stock)
74MW-137798001/0PROTECTION GUARD 110/152.08Add to Cart (out of stock)
75MW-337785062/0UPPER SUPPORT8.52Add to Cart (out of stock)
76MW-125943011/0SCREW9.50Add to Cart (out of stock)
77MW-112604899/0STARLOCK WASHER RPCO 31.55Add to Cart (out of stock)
78MW-112437509/0FIXING PLATE1.55Add to Cart (out of stock)
79MW-337033021/0L/H CLAMP3.10Add to Cart (out of stock)
80MW-337033020/0R/H CLAMP3.10Add to Cart (out of stock)
81MW-337785057/0ISO PROTECTION SUPPORT35.20Add to Cart (out of stock)

Other Product Diagrams

Pro 110 Q Plus – Controls

Items marked as ‘add to cart’ or ‘in-stock’ will typically be dispatched within 3-5 working days. For items marked as ‘out of stock’ or ‘available to order,’ we will place an order with the manufacturer. The dispatch time for these items may vary depending on their stock levels.
