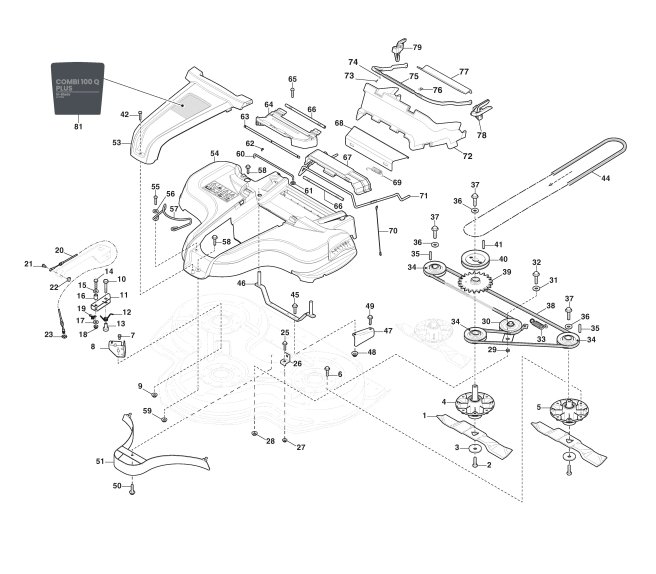

100 Q Plus – Transmission and Blades

No.PartDescriptionPrice £
1MW-1134-9158-01BLADE BAR ASSEMBLY-10094.27Add to Cart (out of stock)
2MW-112692395/2SCREW TE M10 X 553.24Add to Cart (out of stock)
3MW-1134-6211-01BLADE WASHER3.10Add to Cart
4MW-387203001/0LONG BLADE SHAFT ASSEM122.46Add to Cart (out of stock)
5MW-387203000/0SHORT BLADE SHAFT ASSE114.02Add to Cart (out of stock)
6MW-9945-0825-16SCREW M6SF M8 X 252.40Add to Cart (out of stock)
7MW-9959-0820-16FLANGED SCREW M8X20 8.1.55Add to Cart (out of stock)
8MW-337785043/1BRAKE SUPPORT PLATE17.39Add to Cart (out of stock)
9MW-112155015/0SELF-GRIP NUT M81.69Add to Cart
10MW-9960-0860-12SCREW M8 X 601.97Add to Cart (out of stock)
11MW-337315009/0BRAKE LEVER8.29Add to Cart (out of stock)
12MW-137430111/0BRAKE BLADE SPRING 1108.02Add to Cart (out of stock)
13MW-137510326/0BRAKE FULCRUM PIN14.29Add to Cart (out of stock)
14MW-112691120/0HEX-HEAD SCREW M8 X 402.40Add to Cart (out of stock)
15MW-112523060/0WASHER M8 8.4X24X2 UNI1.55Add to Cart (out of stock)
16MW-1134-1565-04SPACER12.46Add to Cart (out of stock)
17MW-112523060/0WASHER M8 8.4X24X2 UNI1.55Add to Cart (out of stock)
18MW-112155015/0SELF-GRIP NUT M81.69Add to Cart
19MW-137430112/1BRAKE TRACTION SPRING8.80Add to Cart (out of stock)
20MW-187000219/0BRAKE CABLE45.04Add to Cart (out of stock)
21MW-125510048/1FIXING PIN2.40Add to Cart (out of stock)
22MW-112436050/0PIN PLATE D=8 (EUROFIX1.82Add to Cart (out of stock)
23MW-112604896/0STARLOCK WASHER D=61.55Add to Cart (out of stock)
25MW-112800815/0SCREW TE FL M8 X 161.55Add to Cart (out of stock)
26MW-1134-5415-01SPRING BRACKET14.08Add to Cart (out of stock)
27MW-112154220/0SELF-LOCK FLANGED NUT1.55Add to Cart (out of stock)
28MW-112154220/0SELF-LOCK FLANGED NUT1.55Add to Cart (out of stock)
29MW-1134-7618-01SPACER10.14Add to Cart (out of stock)
30MW-387605019/0TENSION PULLEY ASSEMBL112.62Add to Cart (out of stock)
31MW-9699-0109-02WASHER 10.5 X 40 X 22.40Add to Cart (out of stock)
32MW-112800815/0SCREW TE FL M8 X 161.55Add to Cart (out of stock)
33MW-1134-0327-00SPRING12.53Add to Cart (out of stock)
34MW-1137-0015-01PULLEY D=106MM27.02Add to Cart (out of stock)
35MW-9600-0171-01FLAT KEY 6 X 6 X 25MM3.10Add to Cart (out of stock)
36MW-1134-5406-01WASHER M10 10.5X35X53.79Add to Cart
37MW-112692395/2SCREW TE M10 X 553.24Add to Cart (out of stock)
38MW-1134-9066-01DRIVE BELT39.36Add to Cart (out of stock)
38MW-1134-9066-01DRIVE BELT39.36Add to Cart (out of stock)
39MW-387178801/0BRAKE DISK81.66Add to Cart (out of stock)
40MW-1137-0016-01PULLEY D=140MM36.59Add to Cart (out of stock)
41MW-112139489/0KEY 6 X 6 X 703.67Add to Cart (out of stock)
42MW-112728697/0SELF-TAPPING SCREW K501.55Add to Cart (out of stock)
44MW-1134-9156-01Call 01732 441333
44MW-1134-9157-01Call 01732 441333
44MW-1134-9244-01PTO BELT [2WD PARK 10067.34Add to Cart (out of stock)
44MW-1134-9245-01PTO BELT [4WD PARK 10052.52Add to Cart (out of stock)
44MW-135061517/0Call 01732 441333
44MW-135061520/0Call 01732 441333
44MW-1134-9244-01PTO BELT [2WD PARK 10067.34Add to Cart (out of stock)
44MW-35061520/0Call 01732 441333
44MW-9585-0205-01Call 01732 441333
44MW-9585-0206-01Call 01732 441333
45MW-9945-0825-16SCREW M6SF M8 X 252.40Add to Cart (out of stock)
46MW-387033105/0DECK STOP BAR ASSEMBLY65.74Add to Cart (out of stock)
47MW-1137-0244-01GUIDE PLATE15.70Add to Cart (out of stock)
48MW-112155000/0Call 01732 441333
50MW-9959-0820-16FLANGED SCREW M8X20 8.1.55Add to Cart (out of stock)
51MW-1137-0163-01MULCHING PLUG102.76Add to Cart (out of stock)
53MW-337060043/0Call 01732 441333
54MW-337060042/0TRANSMISSION COVER [GR106.27Add to Cart (out of stock)
55MW-112728697/0SELF-TAPPING SCREW K501.55Add to Cart (out of stock)
56MW-9699-0087-02WASHER 5.3 X 16 X 22.12Add to Cart
57MW-137294108/0BELT GUIDE13.24Add to Cart (out of stock)
58MW-9945-0825-16SCREW M6SF M8 X 252.40Add to Cart (out of stock)
60MW-1137-0171-01ROD8.87Add to Cart (out of stock)
61MW-112604896/0STARLOCK WASHER D=61.55Add to Cart (out of stock)
62MW-112000930/0Call 01732 441333
63MW-137294106/0BELT GUIDE14.50Add to Cart (out of stock)
64MW-337060046/0PROTECTION COVER9.43Add to Cart (out of stock)
65MW-112728696/0SELF-TAPPING SCREW 4X11.55Add to Cart (out of stock)
66MW-1137-1090-01BELT GUIDE ROD15.48Add to Cart (out of stock)
67MW-337060032/0PROTECTION COVER7.88Add to Cart (out of stock)
68MW-1134-6103-01WEAR PROTECTION PLATE35.20Add to Cart (out of stock)
69MW-137430118/0SPRING4.50Add to Cart (out of stock)
70MW-187000220/0CABLE16.40Add to Cart (out of stock)
71MW-137785059/0SUPPORT ROD53.50Add to Cart (out of stock)
72MW-137798001/0PROTECTION GUARD 110/152.08Add to Cart (out of stock)
73MW-125943011/0SCREW9.50Add to Cart (out of stock)
74MW-112604899/0STARLOCK WASHER RPCO 31.55Add to Cart (out of stock)
75MW-337785062/0UPPER SUPPORT8.52Add to Cart (out of stock)
76MW-112437509/0FIXING PLATE1.55Add to Cart (out of stock)
77MW-337785057/0ISO PROTECTION SUPPORT35.20Add to Cart (out of stock)
78MW-337033021/0L/H CLAMP3.10Add to Cart (out of stock)
79MW-337033020/0R/H CLAMP3.10Add to Cart (out of stock)
81MW-114373128/0DECAL "COMBI 100 QPLUS7.67Add to Cart (out of stock)

Other Product Diagrams

Items marked as ‘add to cart’ or ‘in-stock’ will typically be dispatched within 3-5 working days. For items marked as ‘out of stock’ or ‘available to order,’ we will place an order with the manufacturer. The dispatch time for these items may vary depending on their stock levels.
