30E 2T2200483/M21 Chassis Rear

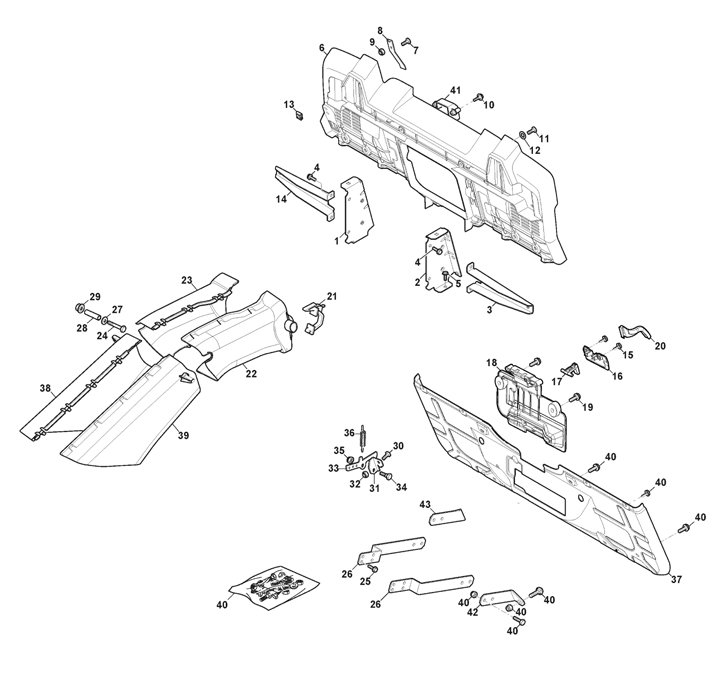

Mountfield Freedom 30E Chassis Rear
No.PartDescriptionPrice £
1MW-325774501/0RIGHT CLAMP BRACKET15.54Add to Cart (Order)
2MW-325774507/0LEFT CLAMP BRACKET15.54Add to Cart (Order)
2MW-325774507/1LEFT CLAMP BRACKET12.31Add to Cart (Order)
3MW-325650163/0SUPPORT BRACKET10.58Add to Cart (Order)
4MW-125943009/0HEX-HEAD SCREW M8X1.251.55Add to Cart (Order)
5MW-125943009/0HEX-HEAD SCREW M8X1.251.55Add to Cart (Order)
6MW-325547299/1UPPER REAR PLATE [BLAC42.84Add to Cart (Order)
7MW-112789008/0Call 01732 441333
8MW-127430600/0MICRO LIFT SEAT SPRING2.68Add to Cart (Order)
9MW-112154330/0LOW SELF-LOCKING NUT M1.46Add to Cart (Order)
10MW-125943010/0FLANGED SCREW1.87Add to Cart (Order)
11MW-112789008/0Call 01732 441333
12MW-112523020/0WASHER M5 5.5X15X1.6 U1.46Add to Cart (Order)
13MW-112437503/0LOCK PLATE1.87Add to Cart (Order)
14MW-325650163/0SUPPORT BRACKET10.58Add to Cart (Order)
15MW-112728686/0Call 01732 441333
16MW-325109522/0MICRO LEVER COVER2.28Add to Cart (Order)
17MW-325318276/0FULCRUM LEVER3.35Add to Cart (Order)
18MW-325785428/0MICRO SWITCH SUPPORT P9.18Add to Cart (Order)
19MW-125943010/0FLANGED SCREW1.87Add to Cart (Order)
20MW-325318277/0MICRO SWITCH LEVER1.46Add to Cart (Order)
21MW-325774499/0DISCHARGE CHUTE RELEAS2.41Add to Cart (Order)
22MW-325108057/0RIGHT TOP CHUTE [BLACK15.13Add to Cart (Order)
23MW-325108056/0LEFT TOP CHUTE [BLACK]15.19Add to Cart (Order)
24MW-112792425/0HEX-HEAD SCREW M6 X 551.61Add to Cart (Order)
25MW-112793102/0SCREW TE M8X20 UNI 5731.46Add to Cart (Order)
26MW-325774745/0REAR PLATE CLAMP8.70Add to Cart (Order)
27MW-112521340/0WASHER M7 7.4X14X1.61.34Add to Cart (Order)
28MW-125160109/0SPACER1.61Add to Cart (Order)
29MW-112154510/0LOW SELF-LOCKING NUT M1.46Add to Cart (Order)
30MW-112789008/0Call 01732 441333
31MW-325755061/0SUPPORT BRACKET2.28Add to Cart (Order)
32MW-112154330/0LOW SELF-LOCKING NUT M1.46Add to Cart (Order)
33MW-325774533/0LOWER HOOKING CLAMP4.43Add to Cart (Order)
34MW-125510080/2CLAMP PIN1.34Add to Cart (Order)
35MW-112154510/0LOW SELF-LOCKING NUT M1.46Add to Cart (Order)
36MW-125430282/1HOOKING SPRING1.74Add to Cart (Order)
37MW-382547071/1LOWER REAR PLATE108.46Add to Cart (Order)
38MW-325108064/0BOTTOM RIGHT CHUTE [BL17.54Add to Cart (Order)
39MW-325108065/0BOTTOM LEFT CHUTE [BLA17.54Add to Cart (Order)
40MW-382180146/0SCREW ASSEMBLY KIT-REA32.14Add to Cart (Order)
41MW-325600107/0BAG SWITCH PROTECTION4.69Add to Cart (Order)
42MW-325650153/0LEFT SUPPORT BRACKET7.76Add to Cart (Order)
43MW-325650151/0RIGHT SUPPORT BRACKET7.76Add to Cart (Order)
