Husqvarna 525RX Brushcutter

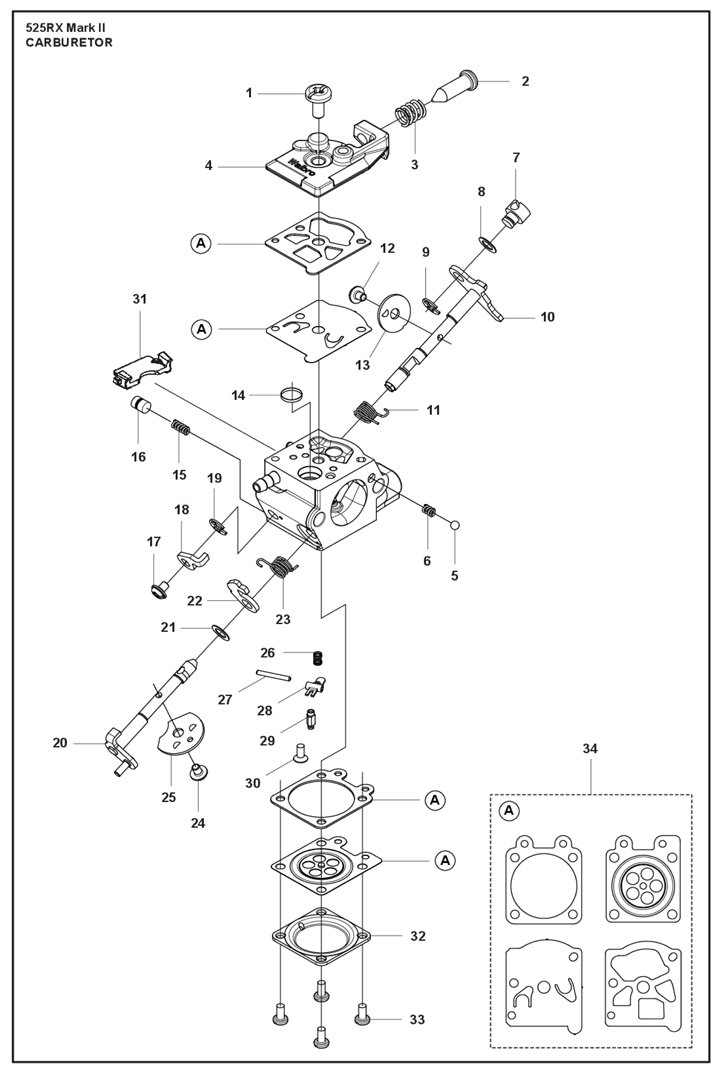

Strimmer – Carburetor

No.	Part	Description	Price £
1	HV-520976301	SCREW	2.33	Add to Cart (Order)
2	HV-577815701	SCREW	12.46	Add to Cart (Order)
3	HV-513593201	SPRING	6.64	Add to Cart (Order)
4	HV-579190601	COVER PUMP	18.06	Add to Cart (Order)
5	HV-514242601	BALL	8.76	Add to Cart (Order)
6	HV-514243301	SPRING.CHOKE	7.64	Add to Cart (Order)
7	HV-513400801	SWIVEL	8.95	Add to Cart (Order)
8	HV-516524201	WASHER	2.04	Add to Cart (Order)
9	HV-506738601	RING	1.60	Add to Cart (Order)
10	HV-579190701	SHAFT ASSEMBLY,THROTTL	27.02	Add to Cart (Order)
11	HV-577815501	SPRING	5.54	Add to Cart (Order)
12	HV-520759801	SCREW	1.27	Add to Cart (Order)
13	HV-514251901	VALVE.THROTTLE	6.24	Add to Cart (Order)
14	HV-520957001	SCREEN	2.33	Add to Cart (Order)
15	HV-505057901	SPRING	2.94	Add to Cart (Order)
16	HV-521578301	PISTON	7.97	Add to Cart (Order)
17	HV-520759801	SCREW	1.27	Add to Cart (Order)
18	HV-579190801	LEVER THROTTLE	26.27	Add to Cart (Order)
19	HV-505056501	RING	4.22	Add to Cart (Order)
20	HV-579191001	SPJAELLAXEL	28.06	Add to Cart (Order)
21	HV-516524201	WASHER	2.04	Add to Cart (Order)
22	HV-584901301	LEVER	26.14	Add to Cart (Order)
23	HV-579191101	SPRING	7.52	Add to Cart (Order)
24	HV-520759801	SCREW	1.27	Add to Cart (Order)
25	HV-529878001	VALVE CHOKE	17.59	Add to Cart (Order)
26	HV-578895401	SPRING	5.88	Add to Cart (Order)
27	HV-520977401	PIN	3.32	Add to Cart (Order)
28	HV-577807201	LEVER	8.24	Add to Cart (Order)
29	HV-521085401	NEEDLE	11.45	Add to Cart (Order)
30	HV-577807101	SCREW	4.14	Add to Cart (Order)
31	HV-529878101	PLATE MANIFOLD	16.64	Add to Cart (Order)
32	HV-514189201	COVER	9.65	Add to Cart (Order)
33	HV-520978801	SCREW ASSY	2.33	Add to Cart (Order)
34	HV-580684801	GASKET KIT	43.36	Add to Cart (Order)
