Honda HRB475K2-QME (8200001-8299999)

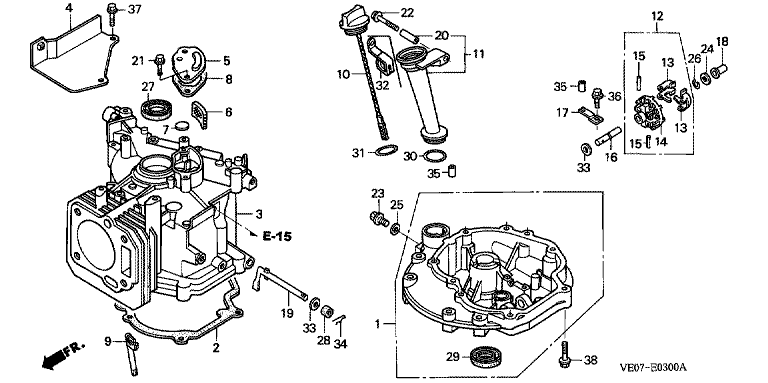

Cylinder Barrel, Oil Pan

No.	Part	Description	Price £
1	HP-11300-ZG9-405	Call 01732 441333
2	HP-11381-ZG9-T00	PACKING, OIL PAN	6.36	Add to Cart (Order)
3	HP-12100-ZG9-415	BARREL COMP., CYLINDER	311.87	Add to Cart (Order)
5	HP-12360-ZE6-000	Call 01732 441333
6	HP-12367-ZE6-010	Call 01732 441333
7	HP-12372-879-000	Call 01732 441333
8	HP-12373-ZE6-000	PACKING, BREATHER CHAM	1.74	Add to Cart (Order)
9	HP-12385-ZE6-000	Call 01732 441333
10	HP-15620-ZE6-810	GAUGE COMP., OIL LEVEL	16.25	Add to Cart (Order)
11	HP-15630-ZE6-810	EXTENSION, OIL FILLER	25.09	Add to Cart (Order)
12	HP-16510-ZE6-000	GOVERNOR ASSY.	23.36	Add to Cart (Order)
13	HP-16511-ZE1-000	WEIGHT, GOVERNOR	3.72	Add to Cart (Order)
14	HP-16512-ZE6-000	HOLDER, GOVERNOR WEIGH	14.78	Add to Cart (Order)
15	HP-16513-ZE1-000	PIN, GOVERNOR WEIGHT	1.75	Add to Cart (Order)
16	HP-16515-ZE6-010	SHAFT, GOVERNOR HOLDER	7.15	Add to Cart (Order)
17	HP-16525-ZE6-010	PLATE, GOVERNOR SHAFT	7.06	Add to Cart (Order)
18	HP-16531-ZE1-000	SLIDER, GOVERNOR	3.72	Add to Cart (Order)
19	HP-16541-ZE7-000	SHAFT, GOVERNOR ARM	9.91	Add to Cart (Order)
20	HP-17240-ZE6-000	COLLAR, EXTENSION	5.90	Add to Cart (Order)
21	HP-90014-952-000	BOLT, FLANGE, 6X14 (CT	3.32	Add to Cart
22	HP-90017-883-000	Call 01732 441333
23	HP-90131-ZE1-000	BOLT, DRAIN PLUG	2.34	Add to Cart (Order)
24	HP-90451-ZE1-000	WASHER, THRUST, 6MM	1.72	Add to Cart (Order)
25	HP-90601-ZE1-000	WASHER, DRAIN PLUG, 10	0.97	Add to Cart (Order)
26	HP-90602-ZE1-000	CLIP, GOVERNOR HOLDER	3.30	Add to Cart (Order)
27	HP-91202-ZE6-013	OIL SEAL, 22X35X6	8.21	Add to Cart (Order)
28	HP-91231-891-003	OIL SEAL, 6X11X4 (ARAI	1.86	Add to Cart (Order)
29	HP-91252-888-003	OIL SEAL, 25X38X7 (ARA	11.63	Add to Cart (Order)
30	HP-91301-ZE9-003	O-RING, 22.1X2.2	1.68	Add to Cart (Order)
31	HP-91301-805-000	O-RING, 26X2.7	3.24	Add to Cart (Order)
32	HP-91406-VA3-900	Call 01732 441333
33	HP-94101-06800	WASHER, PLAIN, 6MM	0.92	Add to Cart (Order)
34	HP-94251-08000	PIN	1.49	Add to Cart (Order)
35	HP-94301-08140	DOWEL PIN, 8X14	2.74	Add to Cart
36	HP-95701-06012-08	BOLT, FLANGE, 6X12	1.27	Add to Cart (Order)
38	HP-95701-06028-00	BOLT, FLANGE, 6X28	1.49	Add to Cart (Order)
