Honda HRB475K2-HME (8200001-8299999)

SKU:

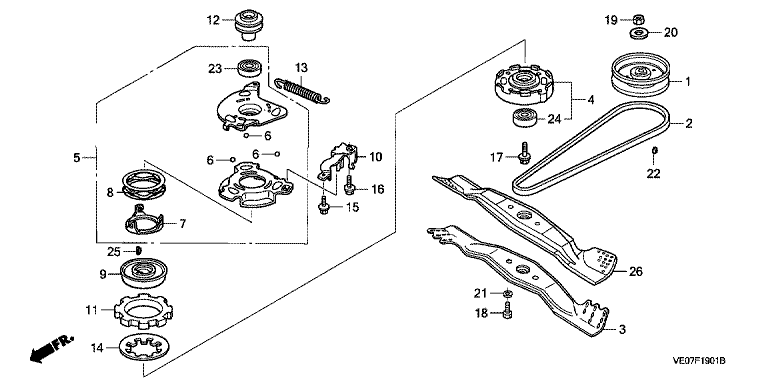

Pulley, Rotary Blade (HME,QME)

No.PartDescriptionPrice £
1HP-22420-VE0-J50PULLEY COMP., DRIVEN63.30Add to Cart (out of stock)
2HP-22431-VE0-800V-BELT (M-33)25.97Add to Cart (out of stock)
4HP-72600-VE1-G00HOLDER ASSY., BLADE68.76Add to Cart (out of stock)
5HP-75110-VE1-G02Call 01732 441333
6HP-75117-VE1-G00BALL, STEEL3.20Add to Cart (out of stock)
7HP-75127-VE1-G00PLATE, SPRING HOOK12.52Add to Cart (out of stock)
8HP-75132-VE1-G00SPRING, BALL PLATE9.78Add to Cart (out of stock)
9HP-75141-VE1-G00DISK, DRIVE27.70Add to Cart (out of stock)
10HP-75143-VE0-L50Call 01732 441333
11HP-75150-VE1-G02DISK COMP., DRIVEN69.48Add to Cart (out of stock)
12HP-75162-VF1-A50PULLEY, DRIVE29.52Add to Cart (out of stock)
13HP-75182-VE1-G01Call 01732 441333
14HP-75183-VE1-G01SPRING, CLUTCH8.81Add to Cart (out of stock)
15HP-90014-952-000BOLT, FLANGE, 6X14 (CT3.52Add to Cart
16HP-90022-888-010Call 01732 441333
17HP-90101-VE1-G00BOLT, FLANGE, 10X242.62Add to Cart (out of stock)
18HP-90105-960-710Call 01732 441333
19HP-90304-GA6-003NUT, AXLE, 10MM5.10Add to Cart (out of stock)
20HP-90405-KV3-000WASHER, THRUST, 11X20X3.83Add to Cart (out of stock)
21HP-90481-430-000WASHER, SPRING, 10MM0.90Add to Cart (out of stock)
22HP-90751-VE2-M00KEY, WOODRUFF0.32Add to Cart (out of stock)
23HP-91051-VE1-G00BEARING, RADIAL BALL,23.77Add to Cart
24HP-91052-VE1-G00Call 01732 441333
25HP-94401-16150KEY0.58Add to Cart (out of stock)
26HP-72511-VE0-741Call 01732 441333
