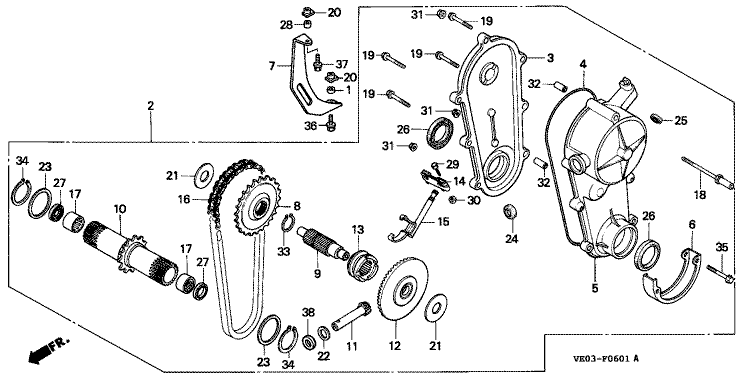

Honda HRB475-QXE (8000001-8099999)

Transmission

No.	Part	Description	Price £
1	HP-19612-896-750	COLLAR, FAN COVER	1.97	Add to Cart (Order)
2	HP-20001-VA5-700	TRANSMISSION ASSY.	415.52	Add to Cart (Order)
3	HP-21511-VA5-700	CASE, R. TRANSMISSION	67.54	Add to Cart (Order)
4	HP-21592-VA5-701	O-RING, MISSION CASE	5.71	Add to Cart (Order)
5	HP-216B1-VA5-700	Call 01732 441333
6	HP-21911-VA5-700	PROTECTOR, CASE	12.10	Add to Cart (Order)
7	HP-22511-VE0-C50	Call 01732 441333
8	HP-23120-VA5-700	SPROCKET, DRIVE	54.85	Add to Cart (Order)
9	HP-23221-VA5-700	COUNTERSHAFT	45.74	Add to Cart (Order)
10	HP-23372-VA5-701	SPROCKET, DRIVEN	86.40	Add to Cart (Order)
11	HP-23411-VB3-810	PINION, BEVEL	35.88	Add to Cart (Order)
12	HP-23421-VA4-800	GEAR, BEVEL (52T)	71.12	Add to Cart (Order)
13	HP-23431-VA4-801	CLUTCH, DRIVEN	32.32	Add to Cart (Order)
14	HP-23436-VA5-700	Call 01732 441333
15	HP-23440-VA4-800	Call 01732 441333
16	HP-23861-VA5-701	CHAIN, ROLLER DRIVE	51.42	Add to Cart (Order)
17	HP-41103-935-003	BEARING, NEEDLE, 15X21	11.36	Add to Cart (Order)
18	HP-90012-VA5-700	BOLT, GUIDE	5.72	Add to Cart (Order)
19	HP-90121-952-000	BOLT, FLANGE, 6X25 (CT	2.56	Add to Cart (Order)
20	HP-90301-471-000	Call 01732 441333
21	HP-90452-VB5-800	WASHER, THRUST, 12MM	4.52	Add to Cart
22	HP-90452-187-000	WASHER, 10X21	2.90	Add to Cart (Order)
23	HP-90458-729-920	WASHER, THRUST, 28MM	6.53	Add to Cart (Order)
24	HP-91202-KA3-711	OIL SEAL, 10X17X4 (ARA	2.24	Add to Cart (Order)
25	HP-91203-952-771	Call 01732 441333
26	HP-91251-VA5-701	OIL SEAL, 28X38X6	6.36	Add to Cart
27	HP-91252-VA5-701	DUST SEAL, 15X21X3	6.37	Add to Cart
28	HP-91554-VE0-C50	COLLAR, 10X7.6	1.82	Add to Cart (Order)
29	HP-92101-05020-0A	BOLT,HEX (5mm)	0.98	Add to Cart (Order)
29	HP-93500-05020-0A	SCREW,PAN,5X20	1.45	Add to Cart (Order)
30	HP-94001-05000-0S	NUT5MM	3.07	Add to Cart
31	HP-94050-06000	NUT, FLANGE, 6MM	3.07	Add to Cart
32	HP-94301-08140	DOWEL PIN, 8X14	2.74	Add to Cart
33	HP-94510-18000	CIRCLIP, 18M/M	1.27	Add to Cart (Order)
34	HP-94510-28000	CIRCLIP	2.70	Add to Cart (Order)
35	HP-95701-06032-00	BOLT	1.38	Add to Cart
36	HP-95801-06018-00	Call 01732 441333
37	HP-95801-06020-00	Call 01732 441333
