Hayter Harrier 48 Pro 496G

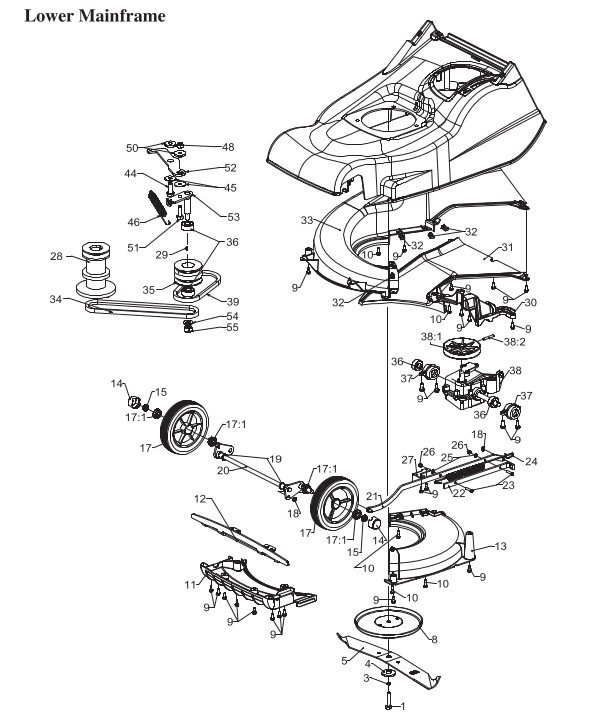

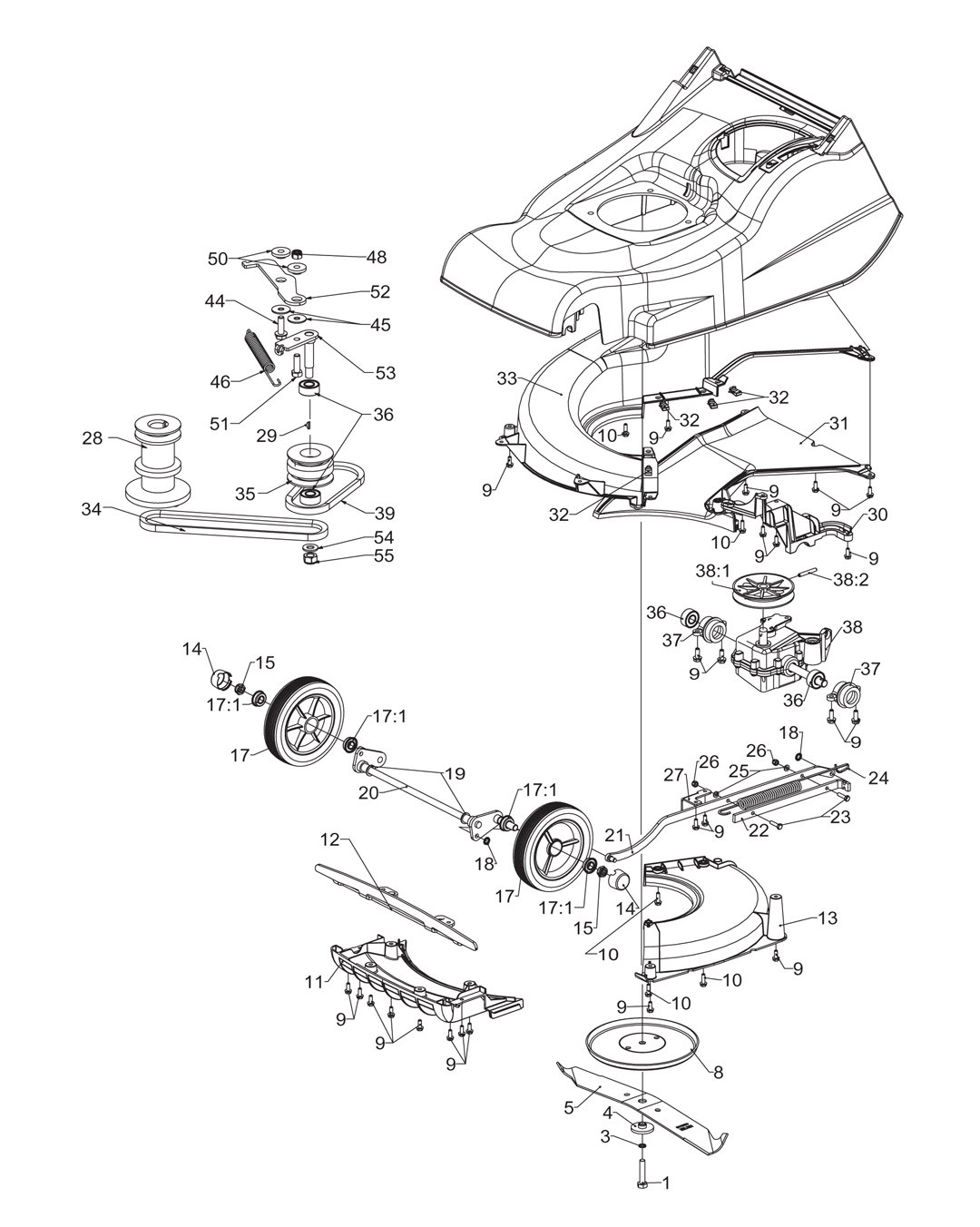

496G Lower Mainframe 3100000001 to 312999999

No.	Part	Description	Price £
1	HY-09788	BOLT	1.50	Add to Cart (Order)
2	HY-09273	WASHER	1.62	Add to Cart
3	HY-HY4014	DISTANCE PIECE CUTTERB	11.53	Add to Cart
4	HY-480149	CUTTER BAR	30.25	Add to Cart
5	HY-410057W	DISC	27.11	Add to Cart
8	HY-09365	SCREW	1.63	Add to Cart
9	HY-09575	SCREW HD TAPTITE(P)	1.62	Add to Cart
10	HY-111-0594	FRONT FINS	27.08	Add to Cart (Order)
11	HY-111-2986-03	BUMP BAR HARRIER PRO	53.99	Add to Cart (Order)
12	HY-111-0133	UNDERDECK COVER ##	29.57	Add to Cart
13	HY-111-1251	HUB CAP	1.82	Add to Cart
14	HY-HY4486	NUT UNF 1/2"NYLOC EXT	1.58	Add to Cart
15	HY-111-1250	WHEEL 7X1.3 \4	30.24	Add to Cart
17	HY-HY300154	BEARING	3.46	Add to Cart (Order)
17:1	HY-0201086	WASHER	1.62	Add to Cart
18	HY-410069	BEARING FRONT AXLE	1.63	Add to Cart
19	HY-111-0588	FRONT AXLE W/A	61.33	Add to Cart (Order)
20	HY-111-0202	CONNECTING ROD	19.55	Add to Cart
21	HY-111-0672	BAR SPRING TENSION	10.88	Add to Cart (Order)
22	HY-09364	SETSCREW M6 X 25	1.56	Add to Cart (Order)
23	HY-410050	SPRING COUNTER BALANCE	7.50	Add to Cart
24	HY-09472	WASHER M6X12X1.6 PLAIN	1.46	Add to Cart (Order)
25	HY-09544	NUT M6 NYL INS GD 8	1.56	Add to Cart (Order)
26	HY-111-0699	BRACKET CONN ROD	9.34	Add to Cart (Order)
27	HY-111-3413	CARRIER BLADE BOSS	146.86	Add to Cart (Order)
28	HY-1662	WOODRUFF KEY NO.505	1.46	Add to Cart
29	HY-111-3303	SUPPORT BRACKET REAR R	10.97	Add to Cart
30	HY-111-0218	THROWPLATE	23.76	Add to Cart
31	HY-410076	LUG NUT	1.82	Add to Cart (Order)
32	HY-111-0131	UNDERDECK CHUTE	84.77	Add to Cart
33	HY-411024	BELT	11.88	Add to Cart
34	HY-111-3433	PULLEY TAKE UP	48.94	Add to Cart (Order)
35	HY-111-1276	BEARING	6.12	Add to Cart
36	HY-410048	BEARING SUPPORT	8.34	Add to Cart
37	HY-111-1273	USE HY-111-7934	70.14	Add to Cart (Order)
38	HY-111-1941	PULLEY GEARBOX 86.5MM	9.72	Add to Cart (Order)
38:1	HY-411023	PIN	1.56	Add to Cart
38:2	HY-411025	VARIATOR BELT	9.73	Add to Cart
44	HY-09787	SCREW TAPTITE M8^25 HE	1.46	Add to Cart (Order)
45	HY-09270	WASHER PLAIN 5/16X1X16	1.62	Add to Cart (Order)
46	HY-HY412004	SPRING VARIATOR	5.95	Add to Cart (Order)
48	HY-09441	NUT	1.62	Add to Cart (Order)
50	HY-411031	BUSH PIVOT	8.41	Add to Cart (Order)
51	HY-03162	STEEL BOLT	1.62	Add to Cart (Order)
52	HY-111-3250	PLATE ARM TAKE-UP	19.01	Add to Cart (Order)
53	HY-111-3326	LEVER TAKE UP ASSEMBLY	41.54	Add to Cart (Order)
54	HY-ZWQ1J000U	PLAIN HEAVY WASHER M10	1.61	Add to Cart (Order)
55	HY-ZNN1J000U	HEX.NUT NYLOC M10	1.66	Add to Cart (Order)
