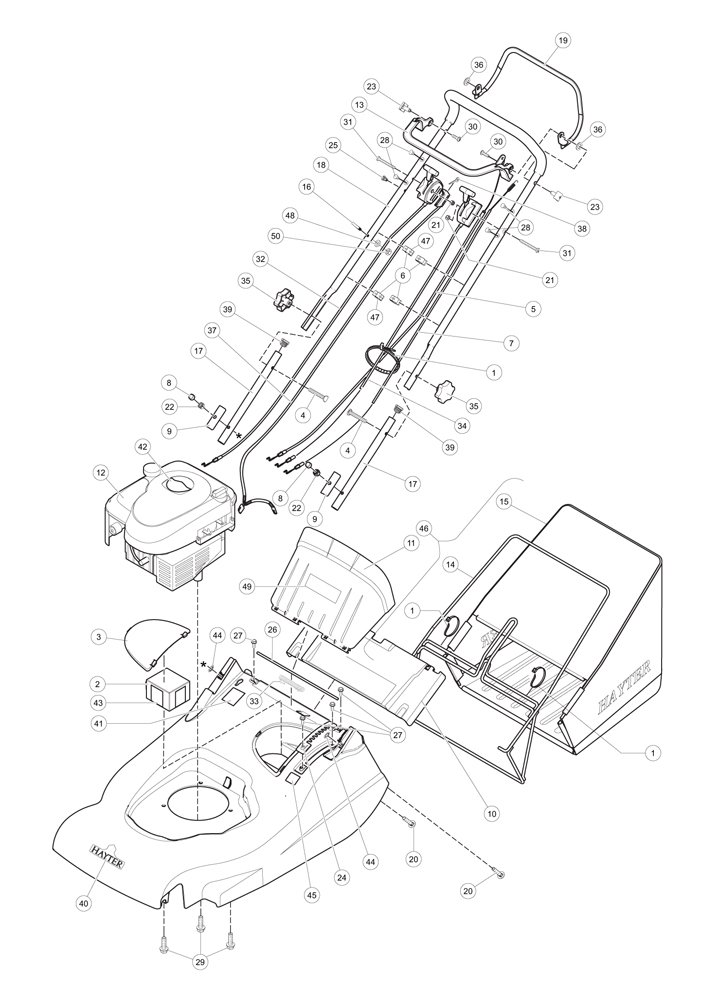

Hayter 490F

Upper Mainframe

No.	Part	Description	Price £
1	HY-09544	NUT M6 NYL INS GD 8	1.56	Add to Cart (Order)
2	HY-HY412009	BATTERY 12V TYPE FG204	88.87	Add to Cart
3	HY-111-0595	COVER BATTERY	10.93	Add to Cart (Order)
4	HY-HY226024	BOLT HANDLEBAR	1.60	Add to Cart
5	HY-111-0998	ENGINE BRAKE CABLE	18.19	Add to Cart
6	HY-410037	GUIDE CABLE	1.46	Add to Cart
7	HY-111-1548	CLUTCH CABLE	29.71	Add to Cart
8	HY-HY234051	CAP FOR M8 NUT BLACK	1.56	Add to Cart (Order)
9	HY-340028	HANDLEBAR CLAMP PLATE	6.26	Add to Cart (Order)
10	HY-111-0083	DECAL - SAFETY PETROL	2.30	Add to Cart (Order)
11	HY-111-1714	REAR DEFLECTOR	29.89	Add to Cart (Order)
12	HY-111-0999	ENGINE_B AND S_ QUANTU	177.54	Add to Cart (Order)
12	HY-111-1001	ENGING_B AND S_QUANTUM	195.74	Add to Cart (Order)
13	HY-340179	Call 01732 441333
14	HY-111-1497-03	FRAME GRASSBAG	55.75	Add to Cart (Order)
15	HY-111-1715	Call 01732 441333
16	HY-305093	GUIDE ROPE	1.62	Add to Cart
17	HY-111-1913-03	LOWER HANDLE	10.27	Add to Cart (Order)
18	HY-111-0519-03	Call 01732 441333
19	HY-111-1921-03	LEVER CLUTCH BLACK	42.52	Add to Cart (Order)
20	HY-09379	BOLT	1.62	Add to Cart (Order)
21	HY-09438	NUT M6 X 1.5 PLAIN	1.62	Add to Cart (Order)
22	HY-09441	NUT	1.62	Add to Cart (Order)
23	HY-340182	PIN	1.62	Add to Cart (Order)
24	HY-111-0201	RATCHET PLATE HOC	6.61	Add to Cart (Order)
25	HY-341033	FASTENER DRIVE 6.5	1.62	Add to Cart (Order)
26	HY-560017	ROD DEFLECTOR	5.12	Add to Cart (Order)
27	HY-09365	SCREW	1.63	Add to Cart
28	HY-300144	FASTENER DRIVE	1.62	Add to Cart (Order)
29	HY-09349	SCREW	1.62	Add to Cart
30	HY-09687	SCREW	1.62	Add to Cart (Order)
31	HY-09780	SETSCREW M6^55 POSI PA	1.87	Add to Cart (Order)
32	HY-410035	THROTTLE CONTROL	33.12	Add to Cart
33	HY-410030	DEFLECTOR SPRING	6.24	Add to Cart
34	HY-111-1193	CABLE VARIATOR	34.12	Add to Cart
35	HY-480088	KNOB	5.35	Add to Cart
36	HY-09688	WASHER NYLON 19111.6	0.68	Add to Cart (Order)
37	HY-561003	Call 01732 441333
38	HY-HY6426	KEY	6.95	Add to Cart (Order)
39	HY-300160	TUBE PLUG	1.62	Add to Cart (Order)
40	HY-410087	HAYTER LOGO (03)	4.79	Add to Cart (Order)
42	HY-111-0759	Call 01732 441333
43	HY-HY412012	FOAM PAD TOP	0.62	Add to Cart (Order)
44	HY-04020	SPRING	1.62	Add to Cart
45	HY-320006	LABEL HEIGHT OF CUT	1.62	Add to Cart (Order)
46	HY-111-1551	KIT GRASSBAG ASSY	138.86	Add to Cart (Order)
47	HY-HY412008	GUIDE CABLE	1.52	Add to Cart (Order)
48	HY-09472	WASHER M6X12X1.6 PLAIN	1.46	Add to Cart (Order)
49	HY-HY3966	STRAP CABLE	1.56	Add to Cart (Order)
50	HY-111-1650-08	MAINFRAME HARRIER 48	445.62	Add to Cart (Order)
