Hayter Harrier 41 410H

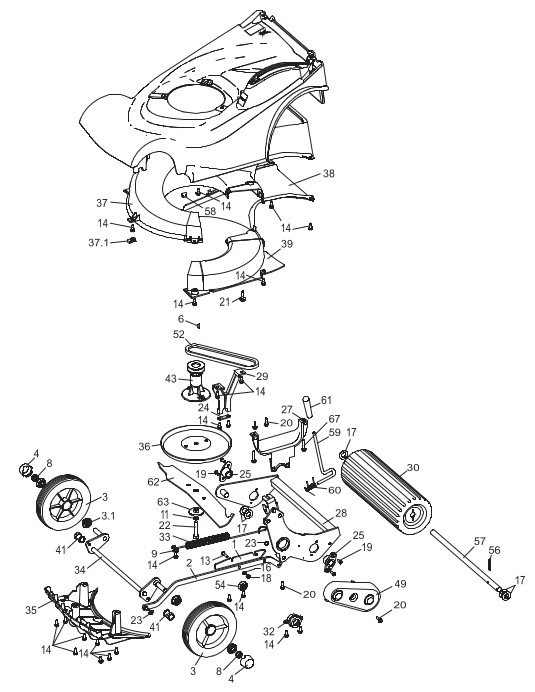

410H Lower Mainframe From S/N 313000001

No.	Part	Description	Price £
1	HY-111-0073	SPRING MOUNT	3.98	Add to Cart (Order)
2	HY-111-1050	CONNECTING ROD WA	27.24	Add to Cart (Order)
3	HY-111-1250	WHEEL 7X1.3 \4	30.24	Add to Cart
3.1	HY-HY300154	BEARING	3.46	Add to Cart (Order)
4	HY-111-1251	HUB CAP	1.82	Add to Cart
6	HY-1662	WOODRUFF KEY NO.505	1.46	Add to Cart
8	HY-HY4486	NUT UNF 1/2"NYLOC EXT	1.58	Add to Cart
9	HY-09262	WASHER 1/4X3/4 GALV RO	1.63	Add to Cart (Order)
11	HY-09273	WASHER	1.62	Add to Cart
12	HY-04020	SPRING	1.62	Add to Cart
13	HY-09364	SETSCREW M6 X 25	1.56	Add to Cart (Order)
14	HY-09365	SCREW	1.63	Add to Cart
16	HY-09472	WASHER M6X12X1.6 PLAIN	1.46	Add to Cart (Order)
17	HY-09491	WASHER	1.66	Add to Cart (Order)
18	HY-09544	NUT M6 NYL INS GD 8	1.56	Add to Cart (Order)
19	HY-09545	SCREW	1.62	Add to Cart
20	HY-09575	SCREW HD TAPTITE(P)	1.62	Add to Cart
22	HY-09788	BOLT	1.50	Add to Cart (Order)
23	HY-0201086	WASHER	1.62	Add to Cart
24	HY-219037	PLATE	1.62	Add to Cart (Order)
25	HY-219102	HOUSING	12.67	Add to Cart
27	HY-HY410002	BRACKET - PIVOT LH	29.23	Add to Cart (Order)
28	HY-410011W	FRAME REAR ROLLER W/A	132.32	Add to Cart
29	HY-410016	BRACKET	22.85	Add to Cart (Order)
30	HY-410044	ROLLER	68.53	Add to Cart (Order)
32	HY-410048	BEARING SUPPORT	8.34	Add to Cart
33	HY-410050	SPRING COUNTER BALANCE	7.50	Add to Cart
34	HY-410051	AXLE FRONT W/A	58.15	Add to Cart (Order)
35	HY-410055	FINS	9.13	Add to Cart (Order)
36	HY-410057W	DISC	27.11	Add to Cart
37	HY-410058	CHUTE	48.95	Add to Cart
37.1	HY-410076	LUG NUT	1.82	Add to Cart (Order)
38	HY-410059	THROWPLATE	9.71	Add to Cart
39	HY-410060	COVER UNDERDECK	22.12	Add to Cart
41	HY-410069	BEARING FRONT AXLE	1.63	Add to Cart
43	HY-410078	BLADE BOSS	41.78	Add to Cart
45.1	HY-411023	PIN	1.56	Add to Cart
45.2	HY-111-1941	PULLEY GEARBOX 86.5MM	9.72	Add to Cart (Order)
49	HY-411013	COVER	3.80	Add to Cart
56	HY-411037	KEY	5.02	Add to Cart
57	HY-411038	ROLLER SHAFT	30.62	Add to Cart (Order)
58	HY-410082	FASTENER	1.56	Add to Cart (Order)
59	HY-480128	LEVER	8.16	Add to Cart (Order)
60	HY-480132	SPRING TORSION HOL	1.16	Add to Cart (Order)
61	HY-480134	KNOB-HOC	2.09	Add to Cart
62	HY-HY201026	CUTTERBAR 16"	29.52	Add to Cart
63	HY-HY4014	DISTANCE PIECE CUTTERB	11.53	Add to Cart
67	HY-09786	SCREW TAPTITE M6^35 HE	1.56	Add to Cart

Hayter Harrier 41 410H

410H Lower Mainframe From S/N 313000001
