ECHO SRM520ESU

SKU: EC-SRM520ESU

(38000001 to 38999999) Carburetor

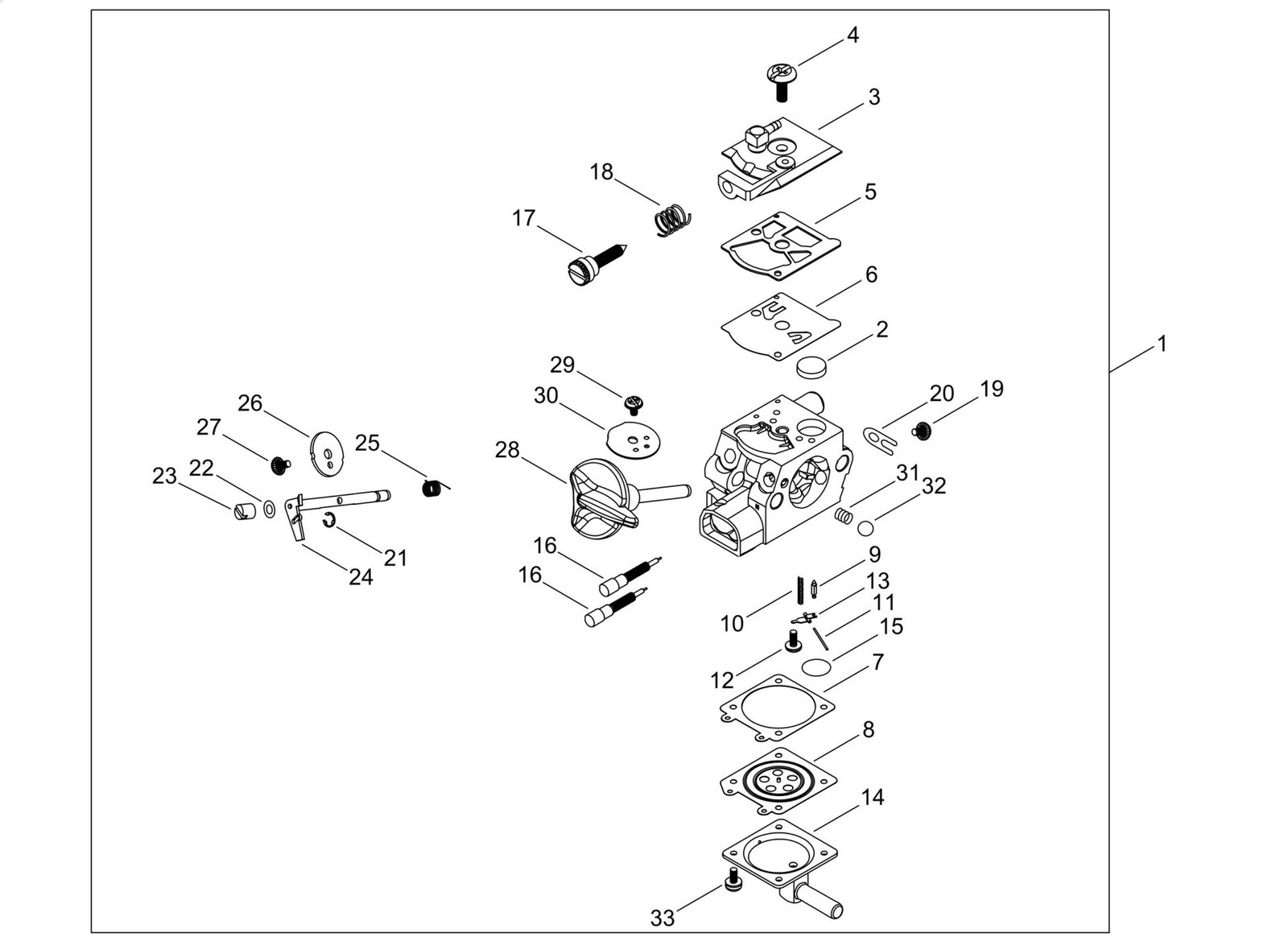

Echo SRM520ESU (38000001 to 38999999) - Carburetor
No.PartDescriptionPrice £
1EH-A021-004220CARBURETOR,DIAPHRAGM147.61Add to Cart (Order)
2EH-123126-10631SCREEN, INLET2.90Add to Cart (Order)
3EH-P003-005450Call 01732 441333
4EH-123110-03930SCREW, PUMP COVER2.34Add to Cart (Order)
5EH-123125-15030GASKET, FUEL PUMP6.56Add to Cart (Order)
6EH-123112-15030DIAPHRAGM, FUEL PUMP13.07Add to Cart (Order)
7EH-123140-27230GASKET,M. DIAPHRAGM4.03Add to Cart (Order)
8EH-P003-001850DIAPHRAGM, METERING23.83Add to Cart (Order)
9EH-123137-19830VALVE, INLET NEEDLE12.59Add to Cart (Order)
10EH-123122-03660Call 01732 441333
11EH-123138-03930PIN, METERING LEVER2.64Add to Cart (Order)
12EH-123139-03930SCREW, M. LEVER PIN3.11Add to Cart (Order)
13EH-123123-03930LEVER, METERING4.40Add to Cart (Order)
14EH-123142-03930Call 01732 441333
15EH-123146-10631PLUG, WELCH3.01Add to Cart (Order)
16EH-P003-002270Call 01732 441333
17EH-123134-04260SCREW, IDLE ADJUST3.48Add to Cart (Order)
18EH-123133-04260SPRING, IDLE ADJUST3.07Add to Cart (Order)
19EH-P003-005120Call 01732 441333
20EH-123127-03930Call 01732 441333
21EH-123173-07930CLIP1.34Add to Cart (Order)
22EH-123149-54230Call 01732 441333
23EH-P003-005460Call 01732 441333
24EH-P003-005020Call 01732 441333
25EH-123113-47530SPRING, THR. RTN.4.26Add to Cart (Order)
26EH-P003-000310Call 01732 441333
27EH-P003-002380Call 01732 441333
28EH-P003-005470Call 01732 441333
29EH-123114-38830SCREW2.64Add to Cart (Order)
30EH-P003-001790Call 01732 441333
31EH-123135-10630Call 01732 441333
32EH-123136-10630Call 01732 441333
33EH-123130-02960Call 01732 441333
