Stiga SBC656DX 283524008/ST1

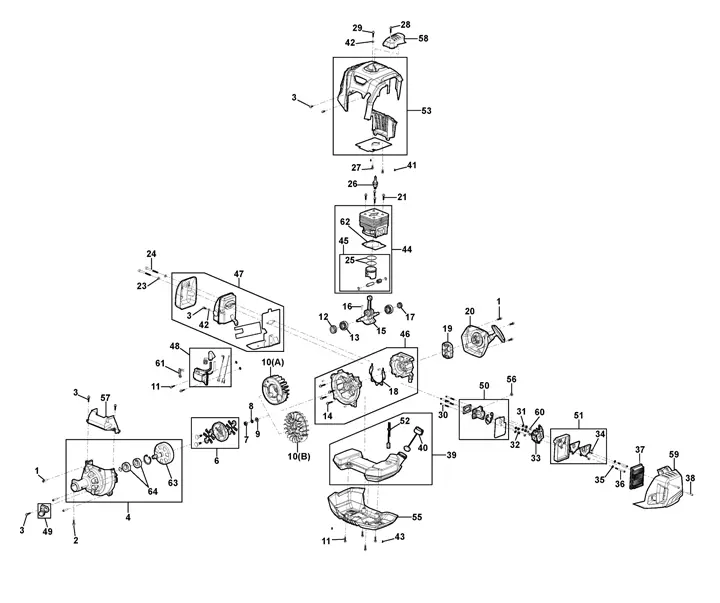

283524008/ST1 Engine

No.	Part	Description	Price £
1	MW-112760475/0	SCREW TC M5 X 20	1.87	Add to Cart (Order)
2	MW-112728721/0	SCREW M6 X 30	1.74	Add to Cart (Order)
3	MW-6981117	SCREW SET	1.27	Add to Cart (Order)
4	MW-118805145/0	TRANSMISSION SUPPORT	72.31	Add to Cart (Order)
6	MW-118805132/0	CLUTCH ASSEMBLY	40.18	Add to Cart (Order)
7	MW-112155010/0	SELF-LOCKING NUT M8 A-	2.02	Add to Cart
8	MW-112583500/0	SPRING LOCK WASHER M8	1.46	Add to Cart
9	MW-122671653/0	Call 01732 441333
10	MW-118805171/0	Call 01732 441333
11	MW-2135060	Call 01732 441333
12	MW-118801197/0	OIL SEAL TC15X30X7	1.27	Add to Cart (Order)
13	MW-118800059/0	BEARING 6202	9.54	Add to Cart (Order)
14	MW-2135130	TORX SCREW M5 X 35	1.34	Add to Cart (Order)
15	MW-118805146/0	CRANKSHAFT ASSEMBLY	48.20	Add to Cart (Order)
16	MW-3151050	FLYWHEEL KEY 3X5X12.65	6.42	Add to Cart (Order)
17	MW-118801188/0	OIL SEAL 12 X 22 X 7	1.27	Add to Cart (Order)
18	MW-118804079/0	CRANKCASE GASKET	1.46	Add to Cart (Order)
19	MW-118805135/0	EASY STARTER DRIVE PLA	3.35	Add to Cart (Order)
20	MW-118805136/0	RECOIL ASSEMBLY	22.76	Add to Cart (Order)
21	MW-6981118	SCREW OUTFIT	1.27	Add to Cart (Order)
23	MW-2312010	FLAT WASHER 6.4X12X1.6	1.34	Add to Cart (Order)
24	MW-118801180/0	M6 X 60 HEX SCREW	1.61	Add to Cart (Order)
25	MW-118805147/0	PISTON RING	3.35	Add to Cart (Order)
26	MW-118805138/0	BPMR7A SPARK PLUG	13.93	Add to Cart (Order)
27	MW-123878020/0	TORX SCREW M4 X 10	1.27	Add to Cart
28	MW-112760475/0	SCREW TC M5 X 20	1.87	Add to Cart (Order)
29	MW-112760475/0	SCREW TC M5 X 20	1.87	Add to Cart (Order)
30	MW-118805168/0	M5X30 DOWEL SCREW	1.46	Add to Cart (Order)
31	MW-112581500/0	GROWER WASHER M5 UNI 1	1.46	Add to Cart (Order)
32	MW-112154320/0	SELF-LOCKING NUT M5	1.46	Add to Cart (Order)
33	MW-118805139/0	CARBURETTOR	129.89	Add to Cart (Order)
34	MW-112726389/0	SCREW M4 X 12	1.46	Add to Cart (Order)
35	MW-9699-0087-02	WASHER 5.3 X 16 X 2	2.02	Add to Cart
36	MW-2135250	Call 01732 441333
37	MW-118805140/0	AIR FILTER [PAPER]	8.98	Add to Cart (Order)
38	MW-2135060	Call 01732 441333
39	MW-118805141/0	FUEL TANK ASSEMBLY	22.90	Add to Cart (Order)
40	MW-118805142/0	FUEL TANK CAP	4.28	Add to Cart (Order)
41	MW-112727810/0	SELF-TAP SCREW 3.5X13	1.46	Add to Cart (Order)
42	MW-9699-0087-02	WASHER 5.3 X 16 X 2	2.02	Add to Cart
43	MW-112728124/0	SELF-TAP SCREW TCB TOR	1.46	Add to Cart (Order)
44	MW-118805105/1	CYLINDER-PISTON KIT	133.91	Add to Cart (Order)
45	MW-118805107/0	SBC 656 PISTON KIT	37.50	Add to Cart (Order)
46	MW-118805108/0	SBC 646-656 CRANKCASE	46.86	Add to Cart (Order)
47	MW-118805109/1	MUFFLER KIT	53.57	Add to Cart (Order)
48	MW-118805226/0	Call 01732 441333
49	MW-118805111/0	PRIMER BULB KIT	11.52	Add to Cart (Order)
50	MW-118805112/1	INTAKE MANIFOLD KIT	19.68	Add to Cart (Order)
51	MW-118805113/1	AIR FILTER BASE KIT	15.26	Add to Cart (Order)
52	MW-118805114/1	FUEL PIPE KIT	11.38	Add to Cart (Order)
53	MW-118805115/1	TOP HOUSING KIT	29.46	Add to Cart (Order)
55	MW-118805170/0	FUEL TANK LOWER COVER	13.66	Add to Cart (Order)
56	MW-112292100/0	HEXAGON NUT M6	1.34	Add to Cart (Order)
57	MW-118805166/0	AIR GUIDE COVER	1.61	Add to Cart (Order)
58	MW-118805167/0	SPARK PLUG CAP COVER	1.87	Add to Cart (Order)
59	MW-118805169/0	AIR FILTER COVER [GREY	7.24	Add to Cart (Order)
60	MW-112154320/0	SELF-LOCKING NUT M5	1.46	Add to Cart (Order)
61	MW-118805217/0	IGNITION SENSOR MODULE	7.90	Add to Cart (Order)
62	MW-118805307/0	CYLINDER GASKET	1.27	Add to Cart (Order)
63	MW-118805572/0	CLUTCH DRUM	29.46	Add to Cart (Order)
64	MW-119216048/0	BEARING 6202 2RS C3	17.41	Add to Cart

Other Product Diagrams

Items marked as ‘add to cart’ or ‘in-stock’ will typically be dispatched within 3-5 working days. For items marked as ‘add to cart (order)’ or ‘available to order,’ we will place an order with the manufacturer. The dispatch time for these items may vary depending on their stock levels.

Stiga SBC656DX 283524008/ST1

283524008/ST1 Engine

Other Product Diagrams

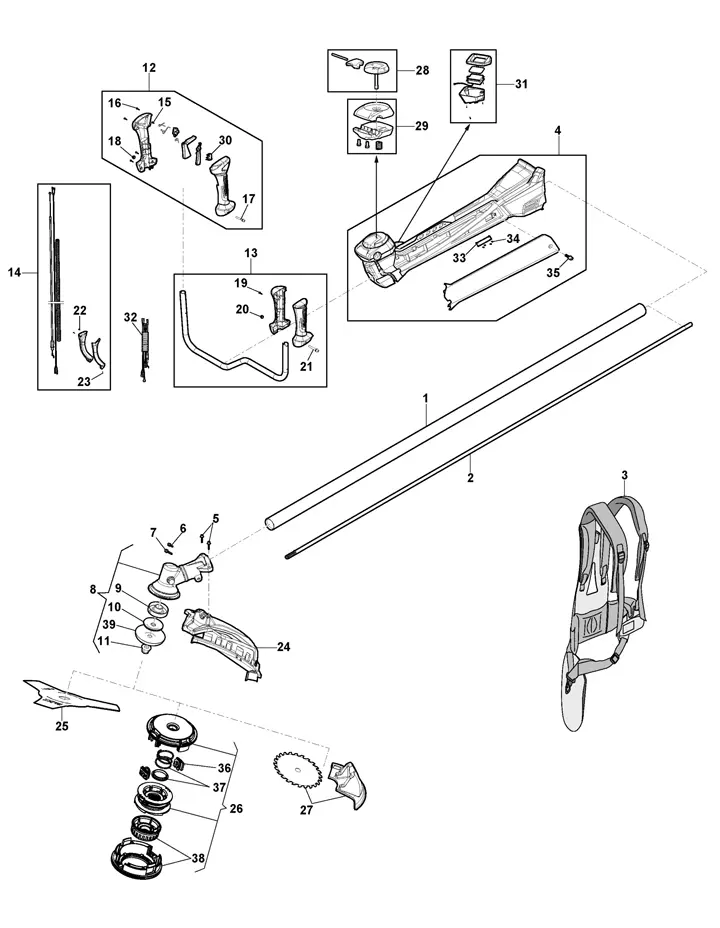

283524008/ST1 Transmission
